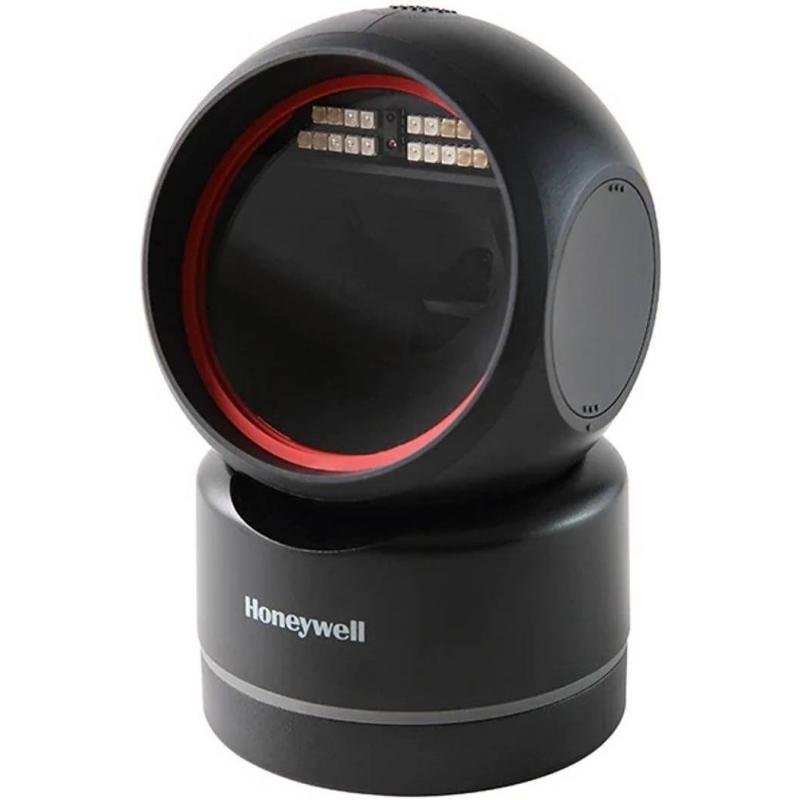

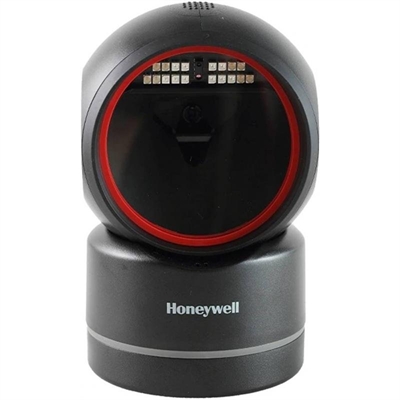

Honeywell HF680 2D/QR Barcode Scanner

The HF680 Bars Code Reader is an advanced solution for the capture of data that combines versatility and efficiency in a compact design. Designed to offer exceptional performance, this reader is able to scan 2D and QR bar codes with rapidity and precision, which makes it an indispensable tool for shops, stores and logistics environments.

With its latest generation image technology, HF680 can read bar codes both on paper and digital screens, facilitating inventory management and improving customer experience at points of sale. Its high scan speed ensures that the payment and entry/merchandise processes are carried out fluently, reducing waiting times and increasing productivity.

The ergonomic design of the Honeywell HF680 allows comfortable use for long days, while its resistant construction ensures durability in demanding environments. In addition, it has versatile connectivity, being compatible with multiple interfaces, which facilitates its integration into existing systems.

This reader is not only easy to configure, but is also intuitive, which minimizes the learning curve for employees. Thanks to its ability to decode a wide variety of bar code formats, HF680 adapts to various applications, from retail to the management of inventories in stores.

In summary, the Honeywell barcode reader HF680 is a powerful and reliable tool that optimizes data capture, improving operational efficiency and customer satisfaction in any business.

Technical Specifications

• Honeywell Brand
• Model HF680-R1-2USB
• Physical Characteristics
• Dimensions (length x width x height): 85 mm x 88 mm x 139 mm
• Weight: 278 +/- 10g
• Electrical
• Input voltage: 5 VDC ± 0.5 V
• In operation: 2.0 W (400 mA at 5 V)
• On standby: 0.85 W (170 mA at 5 V)
• Host interface: SB, RS-232
• Environmental
• Operating temperature: -10 ° C to 40 ° C
• Storage temperature: -40 ° C to 60 ° C
• Humidity: 0% to 95% RH, non-condensing
• Drop: designed to withstand drops of 1 m
• Lighting: 0-100,000 Lux
• Scan Performance
• DPI: 1280 x 800 pixels
• Motion tolerance: up to 2.5 m / s for 13 mil UPC with optimal focus
• Scan angle: Horizontal: 47 °; Vertical: 30 °
• Print contrast: minimum 20% difference in reflectance
• Tilt: +/- 60 °, +/- 70 °
• Decoding capability: reads standard 1D, PDF, 2D symbology
• Revision date 23-11-2020 by MPM
