Name: Grandstream IP Phone GXP2170
Brand: Grandstream
SKU: ITC00325
Availability: InStock

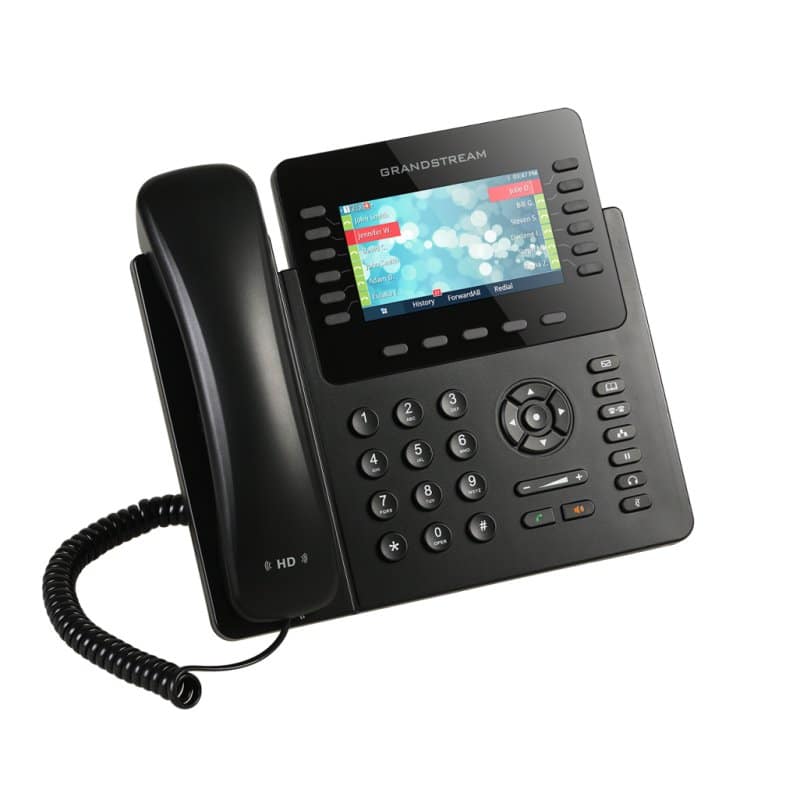

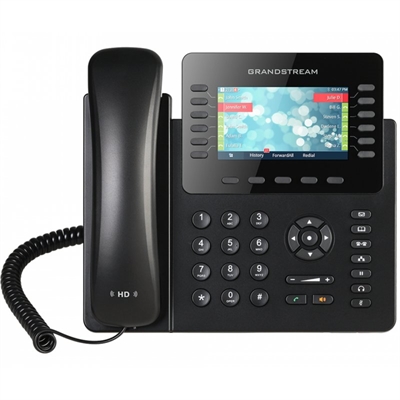

Discover the Grandstream IP Phone GXP2170, an advanced communication solution designed for professionals and businesses seeking quality and efficiency. With its 4.3-inch color screen and multiple SIP accounts, this phone offers an exceptional user experience.

Support for 16 SIP accounts.
Gigabit Ethernet connectivity for fast data transmission.
5-way conference functionality for effective meetings.
Bluetooth compatibility for greater flexibility.

Specifications

The GXP2170 is a powerful enterprise level IP phone ideal for busy users handling high call volumes. This high-end enterprise IP phone features up to 12 line/line appearance keys and 6 SIP accounts using a 4.3-inch color LCD screen and Full HD audio. The GXP2170 supports the fastest possible connection speeds with dual Gigabit Ethernet ports. It has integrated PoE and built-in Bluetooth for synchronization with mobile devices and Bluetooth headsets, as well as the ability to connect/power up to 4 extension modules in cascade with LCD screen for quick dialing/BLF contact access of up to 160. The GXP2170 also features up to 48 digital keys, quick dial/BLF on screen. The GXP2170 is the perfect choice for business users looking for a top-tier executive IP phone with advanced functionality and performance.

Brand	Grandstream
Model	GXP2170
Screen	– 480 x 272 pixels TFT color LED screen
Ports	– Dual Gigabit Ethernet ports with auto-sensing 10/100/1000 Mbps and integrated PoE
Voice	– Support for G7.29A/B, G.711μ/law, G.726, G.722 (wideband), in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Telephony	– Hold, transfer, forward, 5-way conference, call blocking, call capturing, shared call appearance (SCA)/bridged line appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 entries), call waiting, call log (up to 500 records), XML screen customization, auto-dial on off-hook, auto-answer, click-to-dial, flexible dialing plan, quick desktop, custom ringtones and hold music, server redundancy and failover.
Other features	– Protocols/Standards: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6. – Function Keys: 12 line keys with up to 6 SIP accounts, 5 programmable context-sensitive XML function keys, 5 navigation/menu keys, 11 dedicated function keys for: MESSAGE (with LED indicator), DIRECTORY, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL. – Auxiliary Ports: RJ9 headset connector (allowing EHS with Plantronics headsets), USB, extension module port. – HD Audio: Yes, HD handset and hands-free with support for wideband audio. – Stand Base: Yes, 2 angle positions available, wall mountable – QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, DiffServ, MPLS). – Security: User and admin passwords, MD5 and MD5-sess based authentication. AES 256-bit encrypted configuration file, SRTP, TLS, 802.1x media access control – Multilanguage: English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese. – Update/Provisioning: Firmware update via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file. – Power and Clean Energy Efficiency: Universal power adapter included: Input: 100-240V; Output: +5V, 1A; Integrated Power-over-Ethernet (802.3af); maximum power consumption: 5W – Physical Specifications: Dimension: 228 mm (width) x 206 mm (length) x 46 mm (height); Unit weight: 0.98 kg; Package weight: 1.43 kg – Temperature and Humidity: Operation: 0°C to 40°C Storage: -10°C to 60°C Humidity: 10% to 90% non-condensing Compliance – FCC: Part 15 (CFR 47) Class B – CE: EN55022 Class B; EN55024 Class B; EN61000-3-2; EN61000-3-3; – EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.
Package Contents	– GXP2170 phone, wired handset, base stand, universal power supply, network cable, quick installation guide, GPL license
