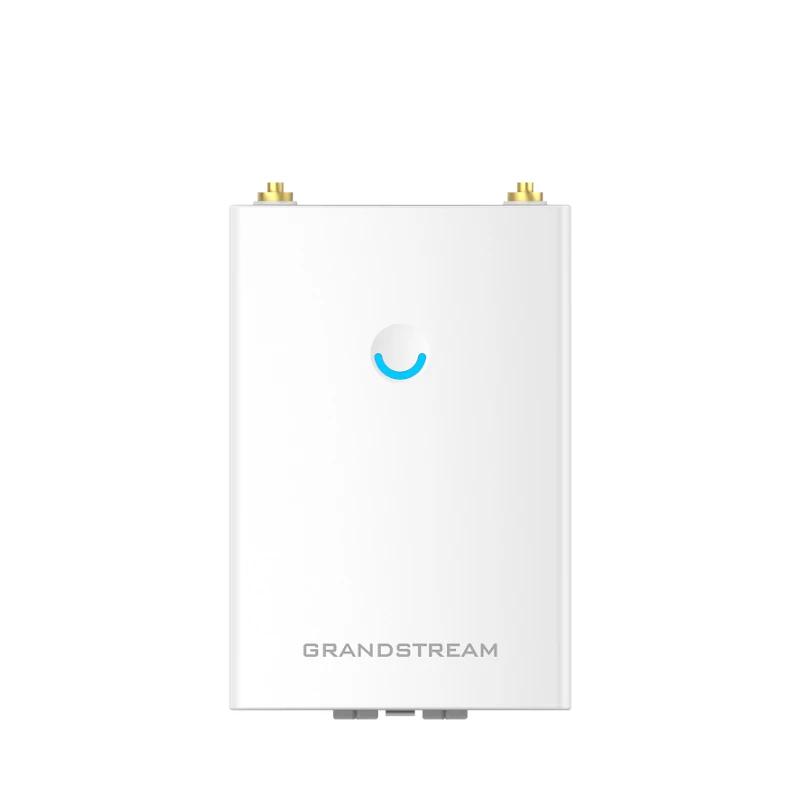

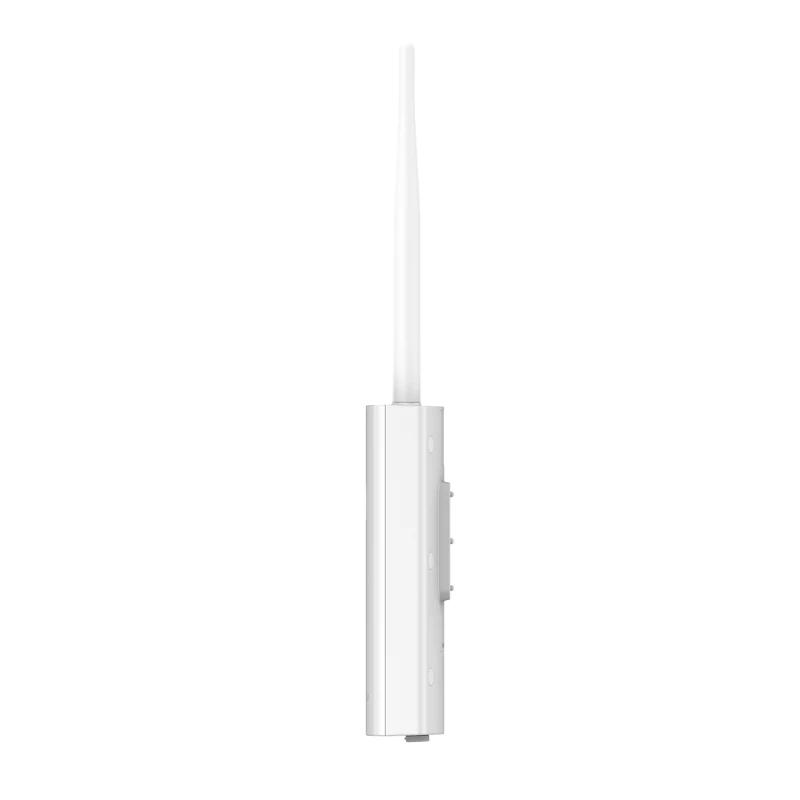

Name: Grandstream GWN7605LR WiFi Access Point 2xGbE Dual Int/Ext
Brand: Grandstream
SKU: IRS02020
Availability: InStock

The Grandstream GWN7605LR is a high -performance Wi -Fi access point designed to provide robust and reliable connectivity in interior and exterior environments. With its elegant and compact design, this device is ideal for companies that require a superior quality network solution, capable of supporting multiple users and devices simultaneously.nnThis model has two Gigabit Ethernet ports that allow a rapid and efficient connection, guaranteeing a fluid data transmission. Its dual-Band capacity (2.4 GHz and 5 GHz) offers greater flexibility and performance, allowing users to enjoy a fast navigation experience without interruptions. In addition, the GWN7605LR is equipped with advanced antennas technology that extend the scope of the signal, ensuring coverage in wide areas and difficult access areas.nnWith an adjustable transmission power, this access point is perfect to adapt to different environments and needs. His robustness makes it resistant to adverse climatic conditions, which makes it the ideal option for outdoor, such as courtyards, terraces or industrial facilities.nnInstalling and managing the GWN7605LR is simple thanks to the Grandstream intuitive network management platform. Administrators can monitor network performance in real time and make personalized configurations easily and quickly.nnIn summary, the Grandstream GWN7605LR is the perfect solution for those looking for a powerful, reliable and versatile Wifi access point, capable of satisfying connectivity demands in any environment.

Specifications

Brand	Grandstream
Model	GWN7605LR
Features	Wifi Standards – IEEE 802.11 a/b/g/n/ac (Wave-2) Antennas – 2 internal dual-band antennas: 2.4 GHz, gain 3.5dBi 5 GHz, gain 3.5dBi Wifi Data Speeds – IEEE 802.11ac: 6.5 Mbps to 867 Mbps – IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps – IEEE 802.11n: 6.5 Mbps to 300 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps – IEEE 802.11b: 1, 2, 5.5, 11 Mbps – IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Actual performance may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment, and the mix of devices on the network. Frequency Bands* – 2.4GHz Radio: 2412 – 2484 MHz – 5GHz Radio: 5180 – 5825 MHz Not all frequency bands may be used in all regions Channel Bandwidth* – 2.4G: 20 and 40 MHz – 5G: 20, 40 and 80 MHz Wifi and System Security – WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, Anti-hacking Secure Boot function and critical data security lock/control via digital signatures, unique security certificate, and random default password per device. MIMO – 2×2:2 2.4G(MIMO) – 2×2:2 5G(MU-MIMO) Coverage – Range of up to 250 meters Coverage range may vary depending on the environment. Maximum TX Power* – 2.4G: 24 dBm – 5G: 22 dBm Maximum power varies by country, frequency band, and MCS speed. Receiver Sensitivity* – 2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 – 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 SSIDs – 16 SSIDs in total, 8 per radio (2.4GHZ and 5GHZ) Simultaneous Clients – More than 100 Network Interfaces – Number of ports: 2 – Type: 10/100/1000Base-T Ethernet ports with auto-sensing Auxiliary Ports – 1 pinhole type reset button
Other Features	Waterproof Rating – IP66 waterproofing when installed vertically Mounting – Outdoor wall mount or wall mount, kit included LED – 1 tricolor LED for device tracking and status indication Network Protocols – IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM QoS – 802.11e/WMM, VLAN, TOS Network Management – The integrated controller can manage up to 50 local GWN Access Points. – GWN.Cloud offers a free cloud management platform for unlimited GWN Access Points. – GWN Manager provides an on-site software controller for up to 3,000 GWN Access Points. Power – POE 802.3af/802.3at – Maximum consumption: 10.16W Compliance – FCC – CE – RCM – IC Environment – Operating: -30°C to 70°C – Storage: -30°C to 80°C – Humidity: 5% to 95% non-condensing Dimensions and Weight – Unit size: 358.3 x 115 mm x 45.3 mm – Unit weight: 655.3 g Contents – Wireless access point 802.11ac Wave-2 model GWN7605LR – Mounting kits – Quick start guide
Review Date	31-01-2023 by RTY
