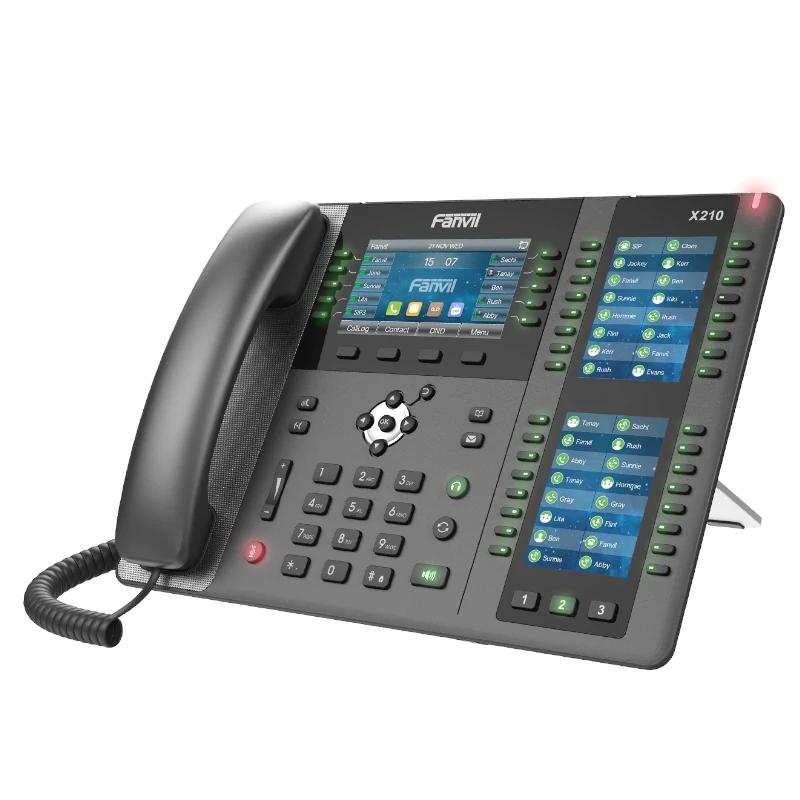

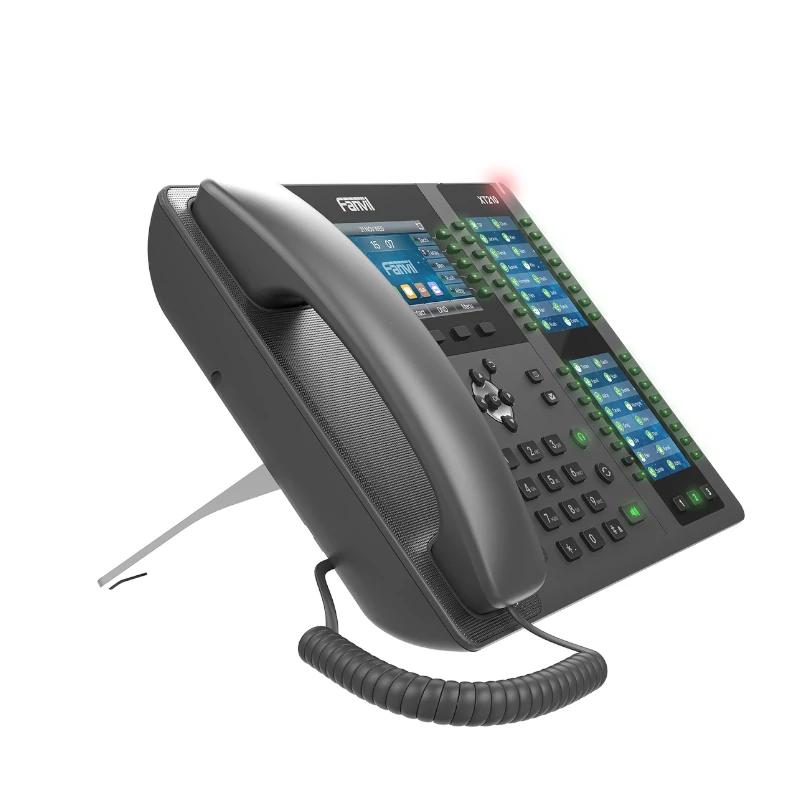

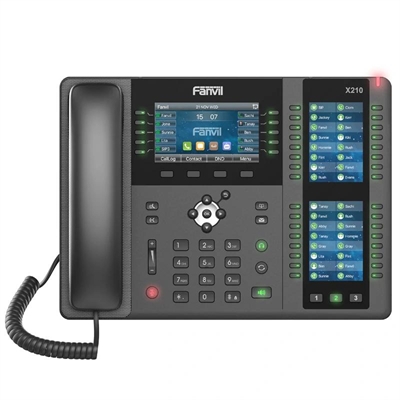

Fanvil X210, 20 SIP lines, 106 DSS keys

– Main screen: 4.3-inch color display of 480 x 272
– Side screen: 320 × 480 Two 3.5-inch color displays
– Video codec: H.264
– Video call: Only receives video from the calling side (1080P)
– DSS keys: 160
– SIP lines: 20
– Line keys: 10
– Local phonebook: 2000
– Call log: 1000
– Audio conference:
  V1: 3-way conference
  V2: 6-way conference
– IPv6
– High definition audio
– Wideband codec: G.722, Opus
– Bluetooth:
  V1: Built-in Bluetooth 2.1
  V2: Built-in Bluetooth 4.2
– Wifi: Via USB Dongle
– PoE
– Network: 10/100/1000Mbps
– EHS headset
– Stand support: 40° and 50°

Phone features
– Local directory (2000 entries)
– Remote directory (XML/LDAP, 2000 entries)
– Call records (incoming/outgoing/missed, 1000 entries)
– Blocked/allowed list
– Screensaver
– Voice mail waiting indication (VMWI)
– Programmable DSS keys/programmable keys
– Network time synchronization
– Built-in Bluetooth 4.2: compatible with Bluetooth headsets
– Wi-Fi Dongle support
– Supports Plantronics wireless headsets (via Plantronics APD-80 EHS cable)
– Compatible with Jabra wireless headsets (via Fanvil EHS20 EHS cable)
– Recording support (via a flash drive or server recording)
– Action URL / Active URI
– uaCSTA
Call functions
– Call/Answer/Reject
– Mute/Unmute (Microphone)
– Call hold/Resume
– Call waiting
– Intercom
– Caller ID display
– Speed dial
– Anonymous call (Hide caller ID)
– Call forwarding (always/busy/no answer)
– Call transfer (attended/unattended)
– Call parking/pickup (depending on the server)
– Redial
– Do not disturb
– Auto answer
– Voice mail (on the server)
– 6-way conference
– Direct line
– Shared desktop

– Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
– IP Mode: IPv4/IPv6/IPv4&IPv6
– IP Configuration: Static/DHCP/PPPOE
– Network Access Control: 802.1x
– VPN: L2TP/OpenVPN
– VLAN
– LLDP
– QoS
– RTCP-XR(RFC3611), VQ-RTCPXR(RFC6035)

Protocols
– SIP2.0 over UDP/TCP/TLS
– RTP/RTCP/SRTP
– STUN
– DHCP
– IPv6
– LLDP
– PPPoE
– 802.1x
– L2TP
– OpenVPN
– SNTP
– FTP/TFTP
– HTTP/HTTPS
– TR-069
Power
– Power: 5V/2A
– Power consumption (PoE): 2.6-9W
– Power consumption (adapter): 2.4-8W
Dimensions
– 309 x 226 x 187mm
