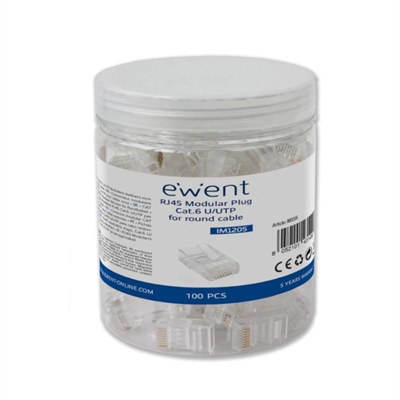

Ewent Modular Connector CAT 6 U/UTP, 100pcs

Discover the Conector Modular CAT 6 U/UTP from Ewent, ideal for securing high-quality network connections. This package includes 100 pieces, perfect for network installation or repair projects. With its U/UTP design, it guarantees efficient and fast data transmission, meeting the most demanding industry standards.

• High quality: Manufactured for exceptional durability.
• Easy installation: Modular connectors that simplify the cabling process.
• Compatible: Ideal for CAT 6 and earlier networks.
• Economical package: 100 pieces to meet all your connection needs.

Technical Specifications

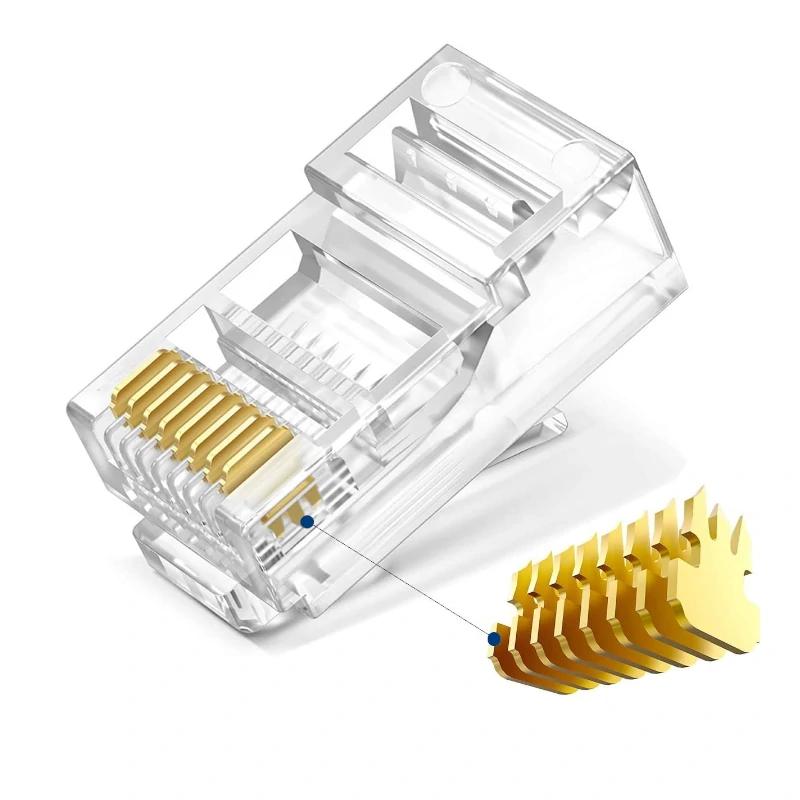

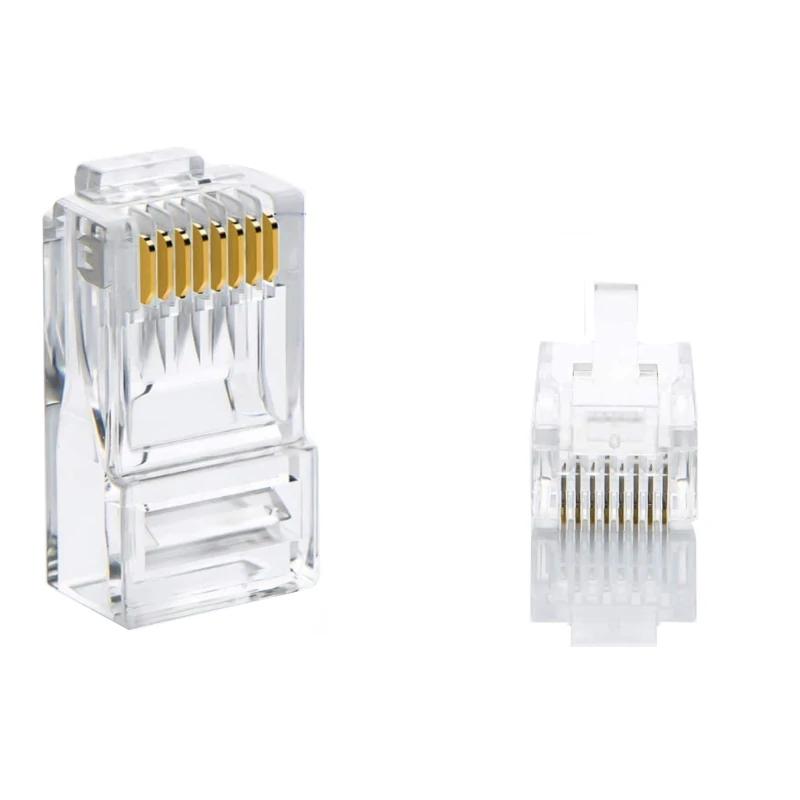

• Modular RJ-45 connector IM1206 for assembling UTP CAT6 connection cable.
• The connector is suitable for rigid round cables AWG 23-26.
• Brand Ewent
• Model IM1205
• Features – For solid cable Cat.6 U/UTP (AWG23-26)
• 15 µ gold-plated contacts
• Performance: CAT 6, 1GBase-T
• Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• Connector body material: Polycarbonate, transparent
• Connector contact: Phosphor bronze, brass 0.15 μ gold-plated
• Min. cable gauge: 26 AWG
• Max. cable gauge: 23 AWG
• Flammability: UL 94V-2
• Rated current: 2 A
• Rated voltage: 250 V
• Revision date 04-04-2023 by MSB
