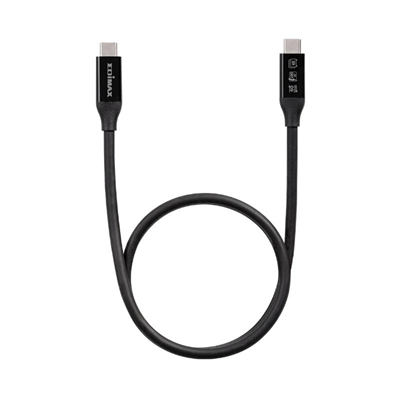

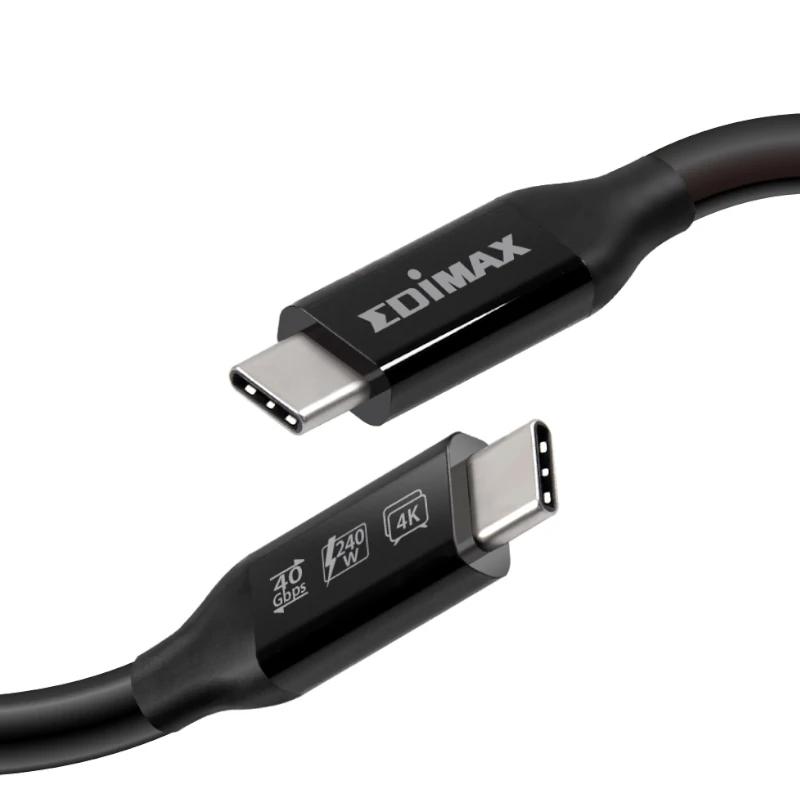

Edimax UC4-020TP USB4 THB3 40Gb Cable 2m C-C

Discover the edimax cable UC4-020TP USB4 THB3 , an essential accessory for those looking for a high speed connection. With a 40GBPS capacity and a 2 meters length, this cable is perfect for rapid and efficient data transfers. Ideal for devices that require a USB4 connection, it is the perfect solution for your cable network . USB4 devices.

Technical Specifications

• Brand Edimax
• Model UC4-020TP
• Features
• Hardware
• Cable type: USB4 / Thunderbolt 3 (TBT3) cable
• USB-C (24 pins) Male to USB-C (24 pins) Male
• Conductor gauge: 30AWG
• Jacket: TPE (Thermoplastic elastomer)
• Cable length
• UC4-005TB: 0.5 meters/1.64 feet
• UC4-010TB V1 and V2: 1 meter/3.28 feet
• UC4-020TP: 2 meters/6.5 feet
• UC4-030TP: 3 meters/10 feet
• UC4-050TP: 5 meters/16.4 feet
• Performance
• Data transfer speed: up to 40 Gbps
• Thunderbolt 3: up to 40 Gbps
• USB4: up to 40 Gbps
• USB 3.2: up to 20 Gbps
• USB 3.1: up to 10 Gbps
• USB 2.0: Up to 480 Mbps
• Power supply: Up to 240 W, 20 V/5 A Max. (*UC4-010TB V1 up to 100W only)
• Audio video:
• DisplayPort alternate mode (DP alternate mode)
• One 4K (4096 x 2160) 30-bit display at 120 Hz
• One 5K (5120 x 2880) 30-bit display at 60 Hz
• Two 4K displays each (4096 x 2160) 30-bit at 60 Hz
• Others
• Standards
• USB4 / USB3.2 / USB3.1 / USB2.0
• Thunderbolt 3
• DisplayPort 1.4
• DisplayPort alternate mode (DP alternate mode)
• PCI-E 3.0
• Temperature range
• Storage: -10~ 70 °C
• Operation: 0~ 55 °C
• Certification: CE, e-Mark
• Review date 29-03-2023 by RTY
