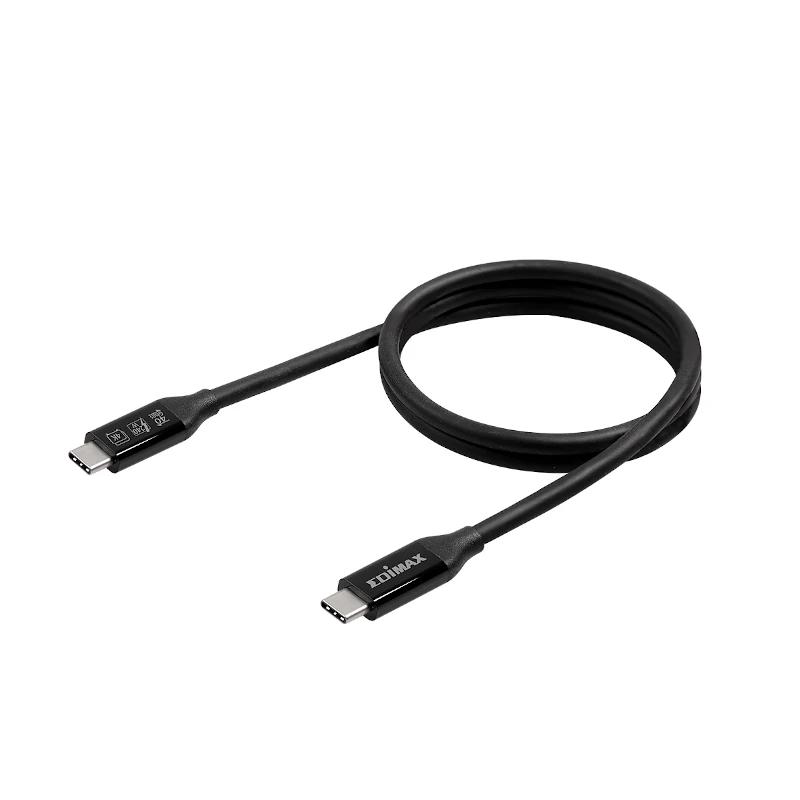

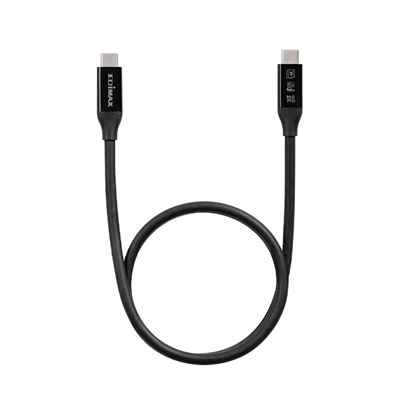

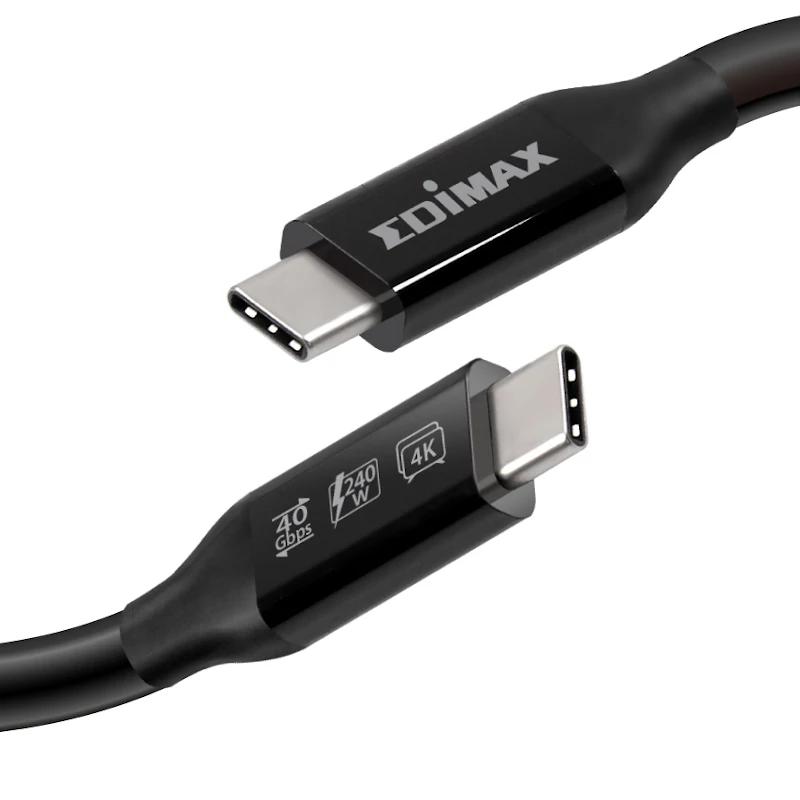

Edimax UC4-010TB V2 USB4 THB3 40Gb Cable 1m C-C

Discover the Edimax UC4-010TB V2 , a 40GB USB4 cable and 1 meter in length, ideal for high-speed connections in cable networks. With its robust design and advanced technology, this cable guarantees optimal performance for your devices. use.

Technical Specifications

• Brand Edimax
• Model UC4-010TB V2
• Features – Cable type: USB4 / Thunderbolt 3 (TBT3)
• Connector: USB-C (24 pins) Male to USB-C (24 pins) Male
• Conductor gauge: 30AWG
• Jacket: TPE (Thermoplastic elastomer)
• Cable length: 1 meter
• Data transfer speed of up to 40 Gbps:
• Thunderbolt 3: up to 40 Gbps
• USB4: up to 40 Gbps
• USB 3.2: up to 20 Gbps
• USB 3.1: up to 10 Gbps
• USB 2.0 Up to 480 Mbps
• Power supply: Up to 240 W, 20 V/5 A Max. (*UC4-010TB V1 up to 100W only)
• Audio / Video:
• Alternate mode DisplayPort (DP alternate mode)
• One 4K (4096 x 2160) 30-bit display at 120 Hz
• One 5K (5120 x 2880) 30-bit display at 60 Hz
• Two 4K displays each (4096 x 2160) 30-bit at 60 Hz
• Other features
• Standards:
• USB4 / USB3.2 / USB3.1 / USB2.0
• Thunderbolt 3
• DisplayPort 1.4
• Alternate mode DisplayPort (DP alternate mode)
• PCI-E 3.0
• Certification:
• CE
• e-Mark
• Environment
• Operating temperature: 0 °C~55 °C
• Storage temperature: -10 °C~70 °C
