Edimax TD-405BP 5-in-1 4xUSB-C 1xUSB3.2
225,33 €
The Edimax TD-405BP 5-in-1 offers four USB-C ports and one USB 3.2 port, allowing for fast and versatile connections for your devices, ideal for enhancing your productivity and organisation.
Shipping Cost & Delivery Time
Discover the Edimax TD-405BP, an innovative 5-in-1 device that transforms the way you connect and manage your devices. With four USB-C ports and one USB 3.2 port, this multifunctional hub is designed to meet the needs of modern users seeking efficiency and versatility.nnThe Edimax TD-405BP not only expands your connection options but also ensures fast and stable data transfer thanks to its USB 3.2 port, which offers speeds of up to 5 Gbps. This means you can transfer large files in seconds, optimising your workflow and saving valuable time.nnIts compact and lightweight design makes it the ideal companion for those always on the move. You can easily carry it in your backpack or bag and connect it to your laptop, tablet, or even your smartphone. Additionally, its high-quality construction ensures durability and resilience, making it perfect for daily use.nnThe Edimax TD-405BP is compatible with a wide range of devices, making it a versatile option for any user. Whether you need to charge multiple devices simultaneously, connect peripherals, or transfer data, this hub has it all.nnWith its exceptional performance and sleek design, the Edimax TD-405BP is the perfect solution for those looking to maximise their productivity without complications. Don’t miss the opportunity to enhance your tech experience with this essential hub.
Specifications
Thunderbolt™ 4 Certification: reliable quality and performance with Intel ® Goshen Ridge solution technology
5-in-1 Plug-and-Play Connectivity: Equipped with one Thunderbolt™ 4/USB4 upstream USB-C port, three Thunderbolt™ 4/USB4 downstream USB-C ports, and one USB-A USB3.2 Gen2 port
Ultra-fast Speed: transfers up to 40 Gbps between Thunderbolt™ 4 or 3 USB-C devices
Smart Power Delivery: provides safe and intelligent dynamic power delivery and charges up to a total max.
Power supply devices of 85 W to USB
Ultimate 8K and Triple-4K UHD Display: Supports a single UHD 8K display, dual-4K, or triple-4K and DisplayPort alternate mode
Wide Compatibility: with the latest Thunderbolt™ 4 technology and backward compatible with Thunderbolt 3, 2, USB-C 3.2, 3.1, and 2.0
Flexible Daisy-Chaining: connection of up to 6 Thunderbolt™ 3 devices
Thin, sleek, and durable aluminum casing
| Brand | Edimax |
| Model | TD-405BP |

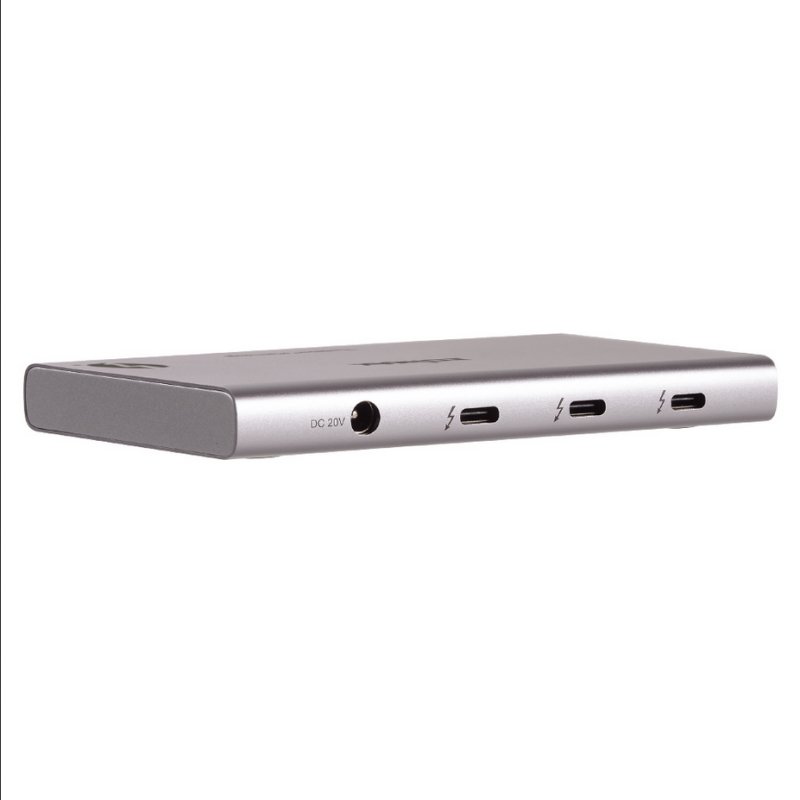

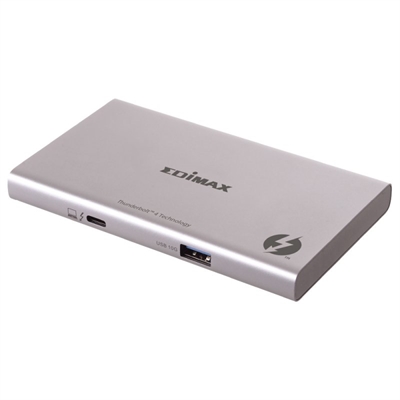

| Hardware | – Main Chip Intel® Goshen Ridge Thunderbolt™ 4 Controller – Front Interface Panel: 1 Thunderbolt™ 4 USB-C upstream port 1 USB3.2 Gen2 type A downstream port – Rear Panel: 3 Thunderbolt™ 4 USB-C downstream ports for Daisy-Chain Thunderbolt™ 4 or 3 devices up to 6 levels 1 power connector. – Power Input 100W, DC20V/5A – Total Output Power max. 85 W for all upstream and downstream ports – Aluminum case – Dimensions 124 x 74 x 13 mm (LxWxH) – Weight 165g |
| Performance | – Data transmission speed up to 40 Gbps Thunderbolt 4 or 3: up to 40 Gbps USB4: up to 40 Gbps USB 3.2 Gen2/USB 3.1: up to 10 Gbps USB 2.0 Up to 480 Mbps – Power delivery up to max. 85W Thunderbolt™ 4 upstream USB-C port for system charging: up to 60 W, 20 V/5 A max. (5V/9V/15V/20V) Thunderbolt™ 4 downstream USB-C port for bus-powered devices: 15 W USB 3.2 Gen2 downstream type A port for power supply: 900 mA (compatible with BC1.2 (5 V/1 A) and Apple Charge 2.1 A) Power supply priority: downstream USB-C, USB-A, and then upstream USB-C – Audio video DisplayPort alternate mode (DP alternate mode) Multi-Stream Transport DisplayPort (MST) One 8K (7680 x 4320) 30-bit display at 60 Hz (compatible with Thunderbolt™ 4 and the PC must support DisplayPort 1.3 or higher for 8K resolutions) One 5K (5120 x 2880) 30-bit display at 60 Hz One 4K (4096 x 2160) 30-bit display at 120 Hz Two 4K displays each (4096 x 2160) 30-bit at 60 Hz Three 4K displays each (4096 x 2160): two 4K 30-bit at 60 Hz and one 4K 30-bit at 30 Hz (compatible with DisplayPort Multi-Stream Transport (MST)) |
| Other Features | – Standard USB4 / USB3.2 / USB3.1 / USB2.0 Thunderbolt™ 4 / Thunderbolt™ 3 DisplayPort 1.4/DisplayPort 1.2 DisplayPort alternate mode (DP alternate mode) Multi-Stream Transport DisplayPort (MST) PCI-E 3.0 – System Requirements Windows 10, Mac OS 11 Thunderbolt™ 4, Thunderbolt™ 3 or USB4 cable with USB-C connectors Power input is required to use the device – Ambient condition temperature: Operating: 0~45°C (32~113°F) Storage: 0~70°C (32~158°F) – Humidity: Operating: 10~90 % (non-condensing) Storage: 10~90% (non-condensing) – CE, FCC Certification, Intel® Thunderbolt™ 4 Certified Package Contents – TD-405BP – Quick installation guide – Power adapter |
| Review Date | 07-09-2022 by MPM |
Additional information
| Weight | 0,165 kg |
|---|---|
| Dimensions | 12,0 × 7,0 × 1,0 cm |
