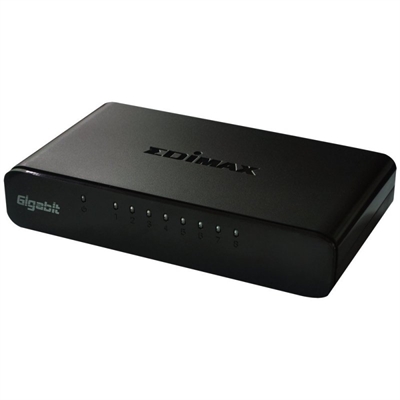

Edimax Switch es-5800g v3 8xgb mini USB
29,04 €
With the Edimax Switch ES-5800G v3, you will enjoy a fast and reliable Gigabit connection for all your devices. Its compact design and easy installation make it the perfect choice for home networks and small offices.
Shipping Cost & Delivery Time
The Edimax Switch ES-5800G v3 is the ideal solution for those looking for an efficient way to expand their local area network. With 8 Gigabit Ethernet ports, this switch allows a fast and stable connection, ideal for homes and small offices that require high performance in data transmission.
Among its most notable features, we find:
- 8 Gigabit Ethernet ports: Provides speeds of up to 1000 Mbps, guaranteeing ultra-fast data transfer.
- Plug and Play: No configuration required, simply plug it in and start using it immediately.
- Compact design: Its mini USB size allows for easy installation and mobility, adapting to any space.
- Energy efficiency: Complies with the IEEE 802.3az standard, reducing power consumption without compromising performance.
This device is perfect for connecting multiple devices, such as computers, printers and security cameras, optimizing the performance of your network. With the Edimax Switch ES-5800G v3, you will enjoy a continuous and reliable connection, thus improving your productivity and network experience.
Specifications
Gigabit Desktop Switch 5-Port
– Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab
– Supports auto MDI / MDI-X crossover detection and auto-correction
– Supports full duplex and half of 10/100Mbps and full duplex for 1000Mbps
– Cable speed packet filtering and forwarding rate
– Store-and-forward error packets filtering fragment architecture and CRC
– Supports jumbo frames up to 9K bytes
– Supports energy-efficient function Ethernet IEEE802.3az
– Supports optional power supply either through a USB port or
Requires 1A USB power adapter not included).
| Brand | Edimax |
| Model | ES-5800G V3 |
| Type | Gigabit Ethernet switch. |
| Connections | – 8 ports 10/100/1000 Auto RJ45 UTP |
| Standards | – IEEE 802.3 10BASE-T – IEEE 802.3u 100BASE-TX – IEEE 802.3ab 1000BASE-T – IEEE 802.3x Flow Control – IEEE 802.3az Energy Efficient Ethernet |
| Power, Link/Act. | |
| Other Features |
– CE, FCC Class B compliance.
– MAC Addresses: 8K.
– Buffer memory: 128K.
– Jumbo Frame: 9K
– Transmission method: Store and forward.
– LEDs: – Per port: Connection/ Act – Per unit: Power
– DC 5V 1A power. – Consumption: 3W (max.) – Dimensions: 136× 76 × 25.5 mm
– Weight: 148g. |
| Revision Date | 30-01-2014 by FE4 |
Additional information
| Weight | 0,3 kg |
|---|---|
| Dimensions | 9,0 × 14,0 × 8,0 cm |
