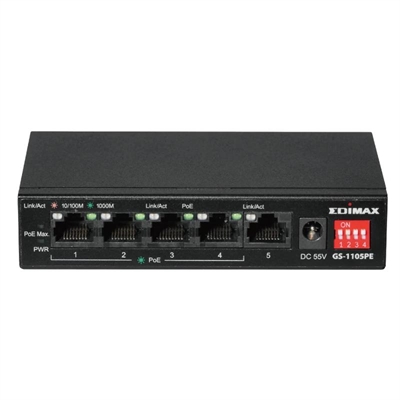

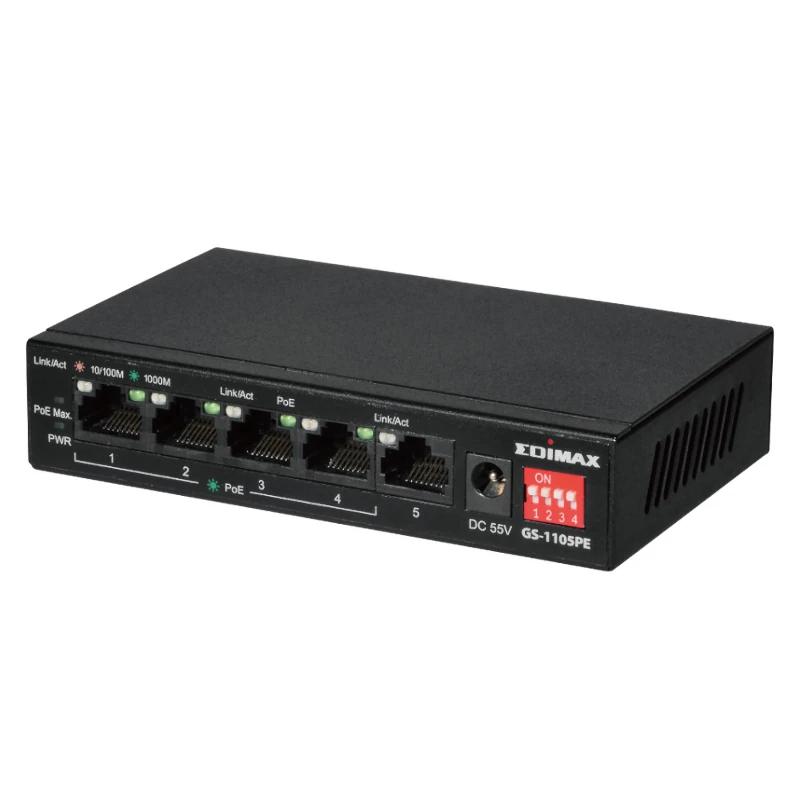

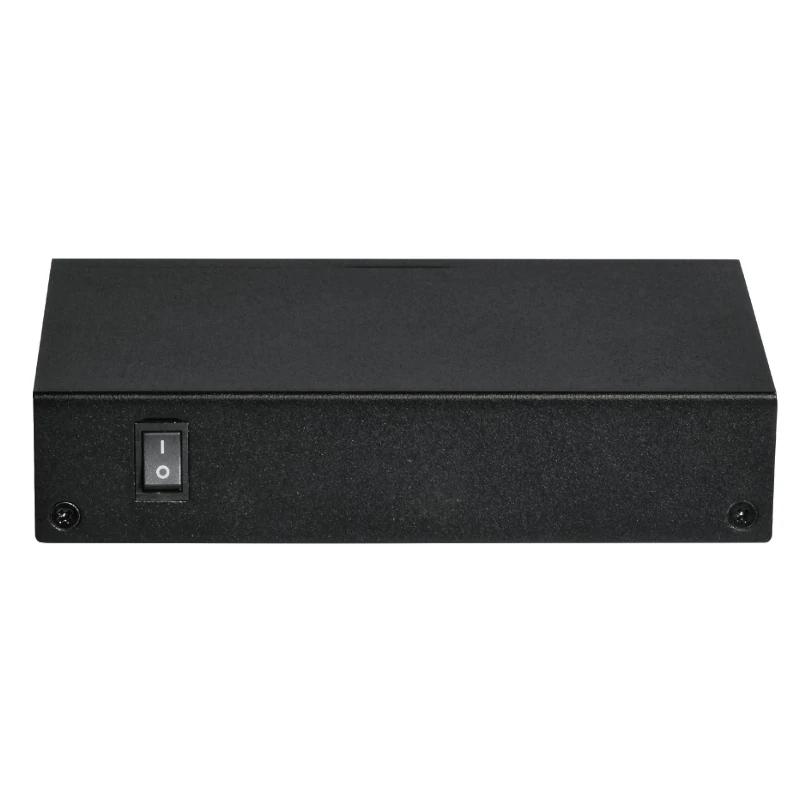

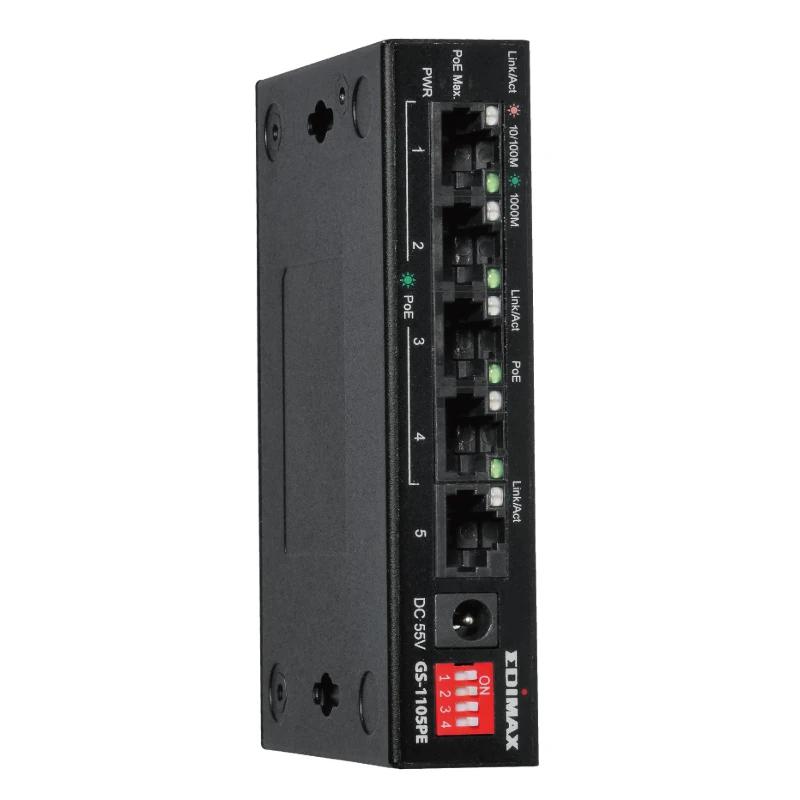

Edimax GS-1105PE SWITCH 5XGBE (4POE+) LR
45,84 €
Opt for the Edimax GS-1105PE SWITCH 5XGBE (4POE+) LR for a fast and efficient network. With 4 PoE+ ports, it simplifies the installation of devices and guarantees optimal performance in your company.
Shipping Cost & Delivery Time
Discover the Edimax GS-1105PE SWITCH 5XGBE (4POE+) LR, a high-performance network switch designed to meet the needs of your business network. With a total of 5 Gigabit Ethernet ports, this switch allows for fast and efficient data transmission, ideal for environments where performance and reliability are essential.
Among its most notable features, we find:
- 4 PoE+ ports: Power over Ethernet that simplifies the installation of devices such as IP cameras and access points.
- Support for speeds up to 1000 Mbps: Ensures an ultra-fast and stable connection.
- Compact and efficient design: Perfect for small spaces and easy to integrate into any network infrastructure.
- Plug and Play: No configuration required, simply plug it in and start using it.
The Edimax GS-1105PE is ideal for small and medium-sized businesses looking for a reliable, high-performance network solution. Its PoE+ technology makes it easy to install network devices without the need for additional adapters, allowing you to reduce costs and simplify cabling. Improve the efficiency of your network and enjoy uninterrupted connectivity with this Edimax switch.
Specifications
| Brand | Edimax |
| Model | GS-1105PE |
| Hardware | – Ports: 4 x RJ-45 10/100/1000Base-T PoE+ ports 1 x RJ-45 10/100/1000Base-T port – LED Indicators: PoE Max.: PoE power budget alert PWR: System power status Link/Action: Connection and transmission status (left LED, port 1-5) PoE: PoE status (right LED, port 1-4) – DIP Switch: PoE Extend, VLAN, QoS – Power Input: External power supply (DC 55 V/1.3 A) – Power Budget: 72 W – Mounting: Desktop or wall – Case: Metal – Fanless |
| Features | – Standards: Ethernet IEEE 802.3 10Base-T Fast Ethernet IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T Gigabit Ethernet Power over Ethernet (PoE) IEEE 802.3af Power over Ethernet (PoE+) IEEE 802.3at IEEE 802.3x Full-duplex and flow control Quality of Service (QoS) IEEE 802.1p Virtual LANs (VLAN) IEEE 802.1Q Energy Efficient Ethernet IEEE 802.3az – Certification: CE FCC BSMI FCC Performance – Switching capacity / Backplane 10 Gbps – Max forwarding rates 7.44 Mpps – MAC address table 2K – Jumbo frames of 9 KB – Packet buffer of 1 Mb Power over Ethernet – Standards IEEE 802.3af (PoE), IEEE 802.3at (PoE+) – Output power Up to 30 W per port – Pin assignment 1/2(+), 3/6(-) Endspan (mode A) – PoE power budget 60W – Long-range DIP switch on to support PoE with long range up to 200 meters at 10 Mbps – Built-in reverse polarity protection Environment Operating temperature: 0~40 °C Storage temperature: -40~70 °C Operating humidity: 10~90 % (non-condensing) Storage humidity: 5~90 % (non-condensing) Dimensions and weight – 121 x 75 x 26 mm – 240 g |
| Review date | 29-05-2025 by RTY |
Additional information
| Weight | 0,82 kg |
|---|---|
| Dimensions | 21,0 × 14,0 × 8,0 cm |
