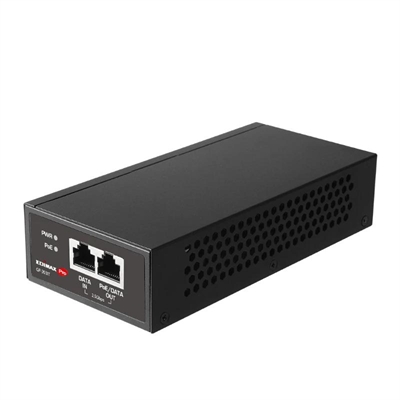

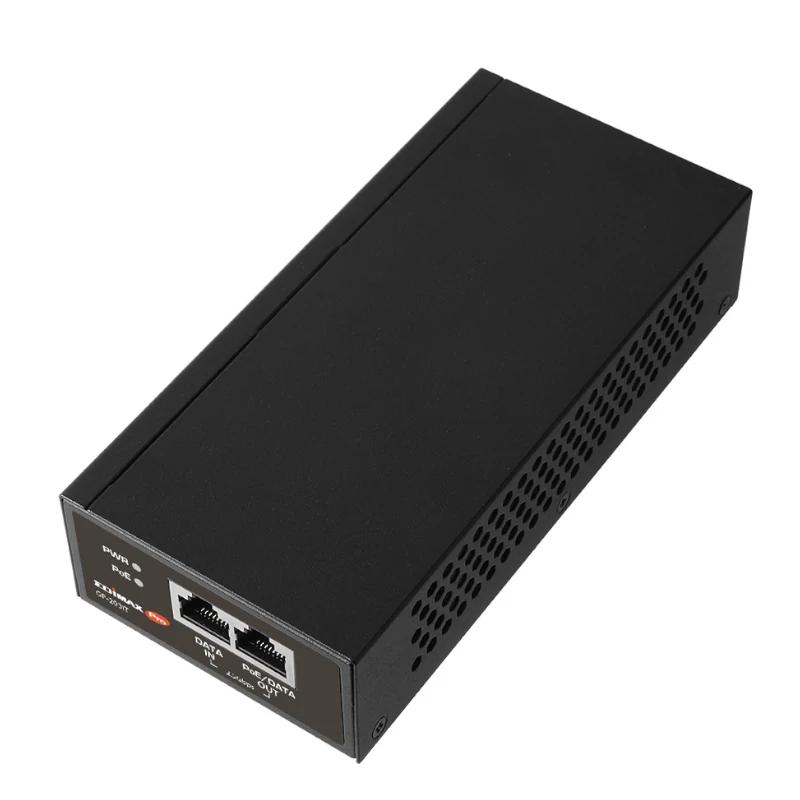

Edimax GP-203IT POE++ Injector Gigabit 90W 802.3bt

Discover the Edimax GP-203IT Inyector POE++ Gigabit 90W 802.3bt, an ideal solution for your power and data needs in a single cable. This POE++ injector is perfect for network devices such as security cameras, access points, and more, ensuring fast and efficient data transmission.

• 90W power for high-demand devices.
• Compatible with the 802.3bt standard for optimal connectivity.
• Compact design and easy to install.
• Ideal for demanding network environments.

Technical Specifications

• Brand Edimax
• Model GP-203IT
• Features – Ports:
• 1 x RJ-45 10 / 100 / 1000 / 2500 Base-T input port
• 1 x PoE RJ-45 10/100/1000/2500 Base-T port
• LED Indicators
• AC Power (PWR)
• PoE Power

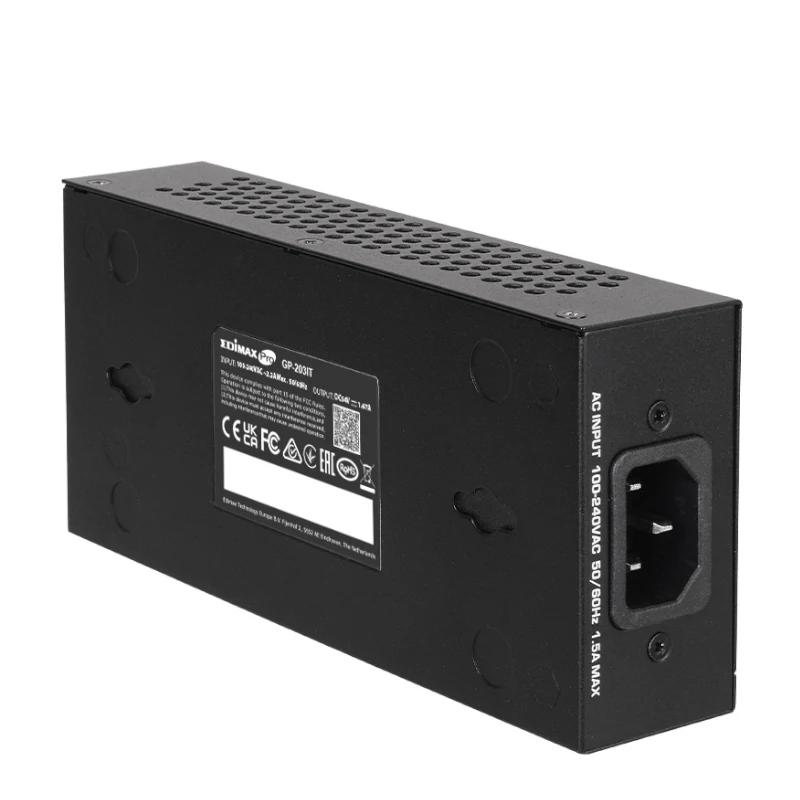

• Input Power: 100-240 V AC, 50-60 Hz, 1.5 A
• Power Consumption: 95W (max.)
• Mounting: Wall
• Enclosure: Metal
• Fan: Fanless
• Standard:
• IEEE 802.3af (PoE)
• IEEE 802.3at (PoE+)
• IEEE 802.3bt (PoE++)
• Power Allocation: 90 watts
• Pin Assignment:
• 1/2, 3/6 for IEEE 802.3af/at PoE/PoE+ power
• 1/2, 3/6 and 4/5, 7/8 for IEEE 802.3bt PoE++ power
• Short Circuit Protection
• Overcurrent Protection
• Automatic PoE PD Detection
• Other Features
• Standards:
• IEEE 802.3 10Base-T Ethernet
• IEEE 802.3u 100Base-TX Fast Ethernet
• IEEE 802.3ab 1000Base-T Gigabit Ethernet
• IEEE 802.3an 2.5GBase-T Gigabit Ethernet
• IEEE 802.3af Power over Ethernet (PoE)
• IEEE 802.3at Power over Ethernet Plus (PoE+)
• IEEE 802.3bt 4-Pair Power Over Ethernet Type 4 (PoE++)
• Certification:
• CE
• FCC
• Environment
• Operating Temperature: 32~104 °F (0~40 °C)
• Storage Temperature: -4~158 °F (-20~70 °C)
• Operating Humidity: 10~90 % (non-condensing)
• Storage Humidity: 5~90 % (non-condensing)
• Dimensions and Weight
• 73 x 154 x 36 mm
• 485 g
