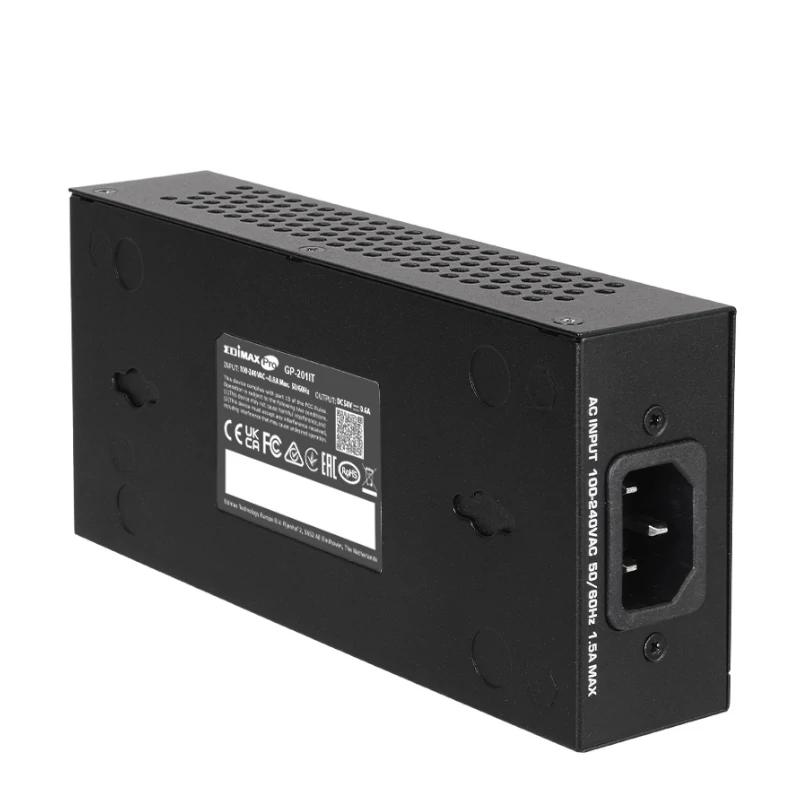

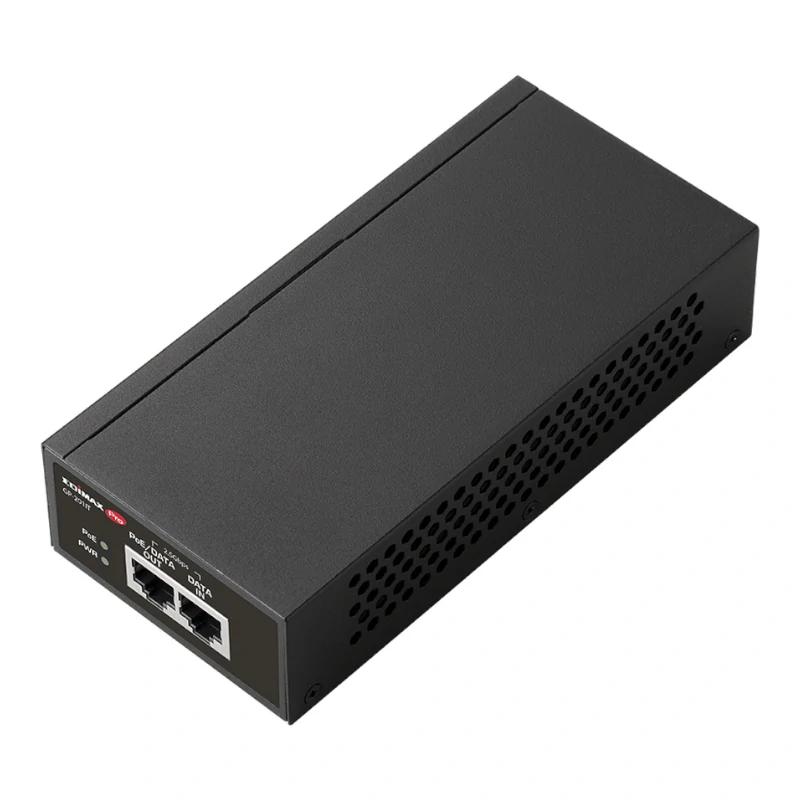

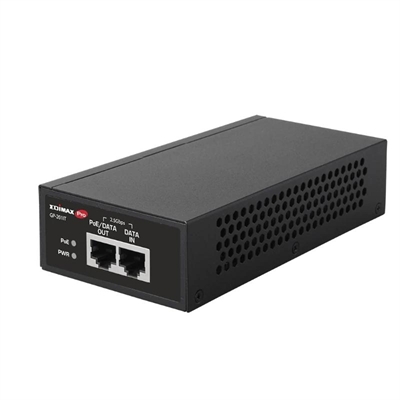

Edimax GP-201IT POE+ Gigabit Injector 30W 802.3at

Improve your network with the EDIMAX GP-201IT injector Poe+ Gigabit 30W 802.3at , an essential device to provide energy and data to your network devices through a single Ethernet cable. Ideal for IP cameras, access points and other devices that require Poe. Compact: facilitates installation in small spaces.

Technical Specifications

• High-Power PoE Port
• Thanks to the integrated 30 W power supply, it connects directly to the power outlet with the power cable. It does not require a large external power adapter, making installation easier and saving space.
• 2.5 Gigabit ports ensure faster connections
• The 10/100/1000/2500 Mbps input and output ports guarantee faster and more reliable connections for all applications. It provides power up to 100 meters (328 feet), making it perfect for IP cameras or for deploying access points in large areas.
• Easy “Plug-and-Play” connection
• You just need to connect the Ethernet-enabled device to the injector. No additional cables, software configuration, or setup is required.
• Quick and easy installation
• Flexible mounting options
• The handy wall-mount design saves space and allows for easy installation.
• Brand Edimax
• Model GP-201IT
• Features – Ports:
• 1 x RJ-45 10 / 100 / 1000 / 2500 Base-T input port
• 1 x RJ-45 10/100/1000/2500 Base-T PoE port
• LED indicators
• AC Power (PWR)
• PoE Power
• Input Power: 100-240 V AC, 50-60 Hz, 1.5 A
• Power Consumption: 33W (max.)
• Mounting: Wall
• Housing: Metal
• Fan: Fanless
• Standard:
• IEEE 802.3af (PoE)
• IEEE 802.3at (PoE+)
• Power Allocation: 30 watts
• Pin Assignment:
• Pins 3, 6, 4, 5 (+),  Pins 1, 2, 7, 8 (-)
• Output Power Voltage: 53V DC
• Short Circuit Protection
• Overcurrent Protection
• Automatic PoE PD Detection
• Other features
• Standards:
• IEEE 802.3 10Base-T Ethernet
• IEEE 802.3u 100Base-TX Fast Ethernet
• IEEE 802.3ab 1000Base-T Gigabit Ethernet
• IEEE 802.3an 2.5GBase-T Gigabit Ethernet
• IEEE 802.3af Power over Ethernet (PoE)
• IEEE 802.3at Power over Ethernet Plus (PoE+)
• Certification:
• CE
• FCC
• Environment
• Operating Temperature: 32~104 °F (0~40 °C)
• Storage Temperature: -4~158 °F (-20~70 °C)
• Operating Humidity: 10~90 % (non-condensing)
• Storage Humidity: 5~90 % (non-condensing)
• Dimensions and weight
• 73 x 154 x 36 mm
• 485 g
• Review date 12-07-2023 by RTY
