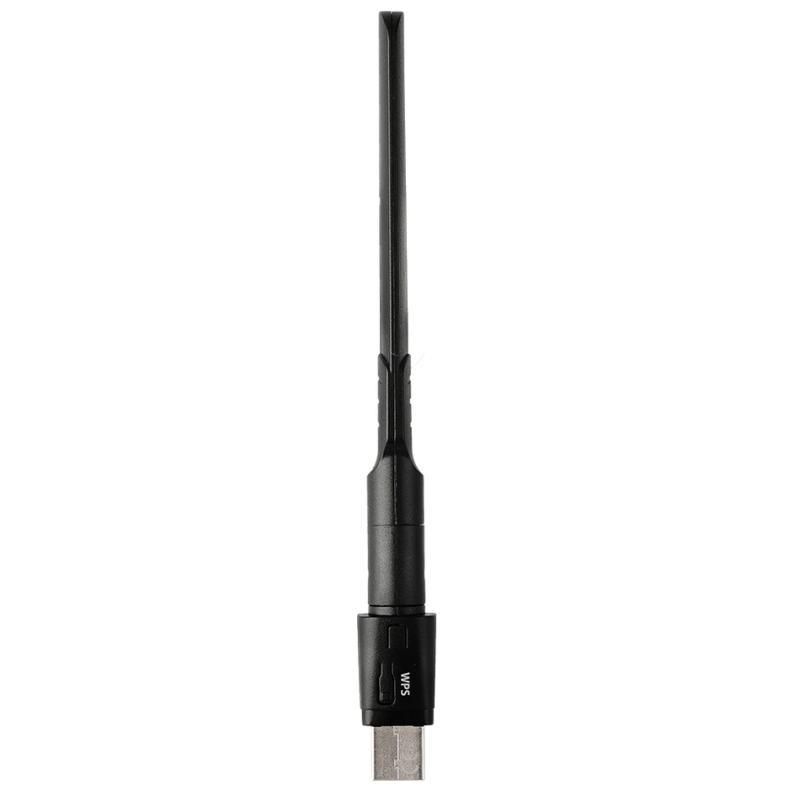

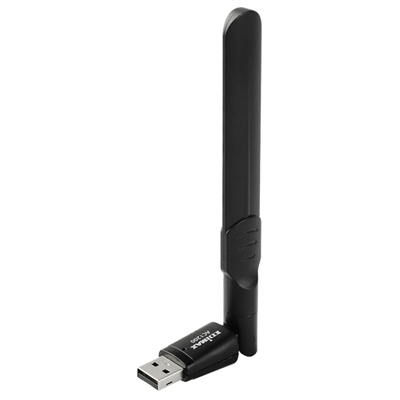

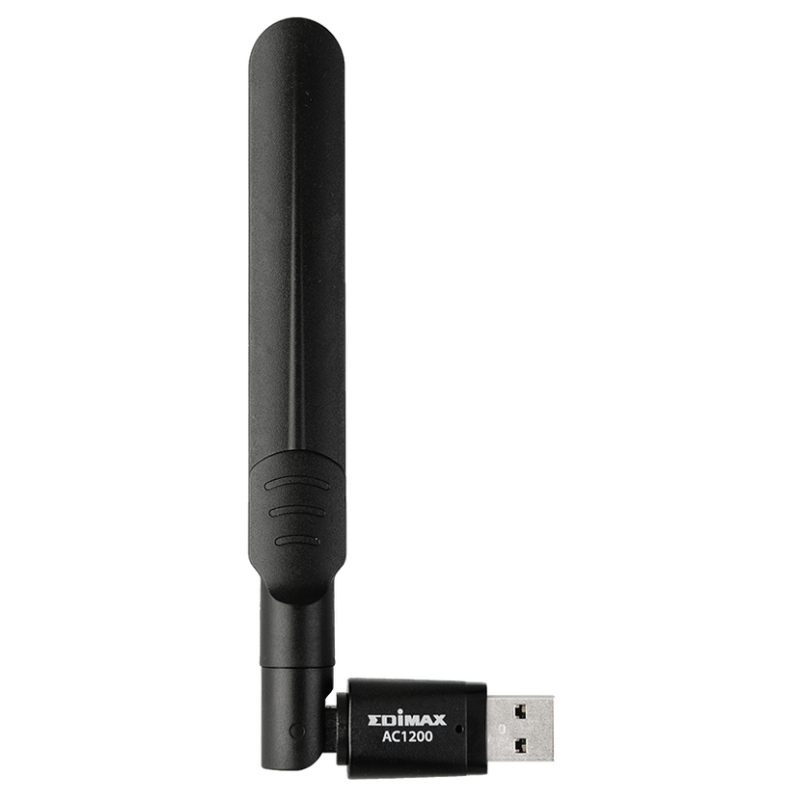

Edimax EW-7822UAD AC1200 WiFi USB3.0 Network Card

Technical Specifications

• USB 3.0 Dual Band Wi-Fi Adapter AC1200 – EW-7822UAD
• MU-MIMO compatible with Wave-2
• Supports hardware WPS button (Wi-Fi Protected Setup) for easy connection
• Supports WMM QoS function
• MAX. data transfer speed of up to 300 Mbps (2.4 GHz) or up to 867 Mbps (5 GHz)
• Dual band wireless connectivity for 2.4GHz or 5GHz
• Adjustable antenna for optimal Wi-Fi performance
• Brand Edimax
• Model EW-7822UAD
• Hardware Features
• Interface: 1 x USB 3.0 Type A
• Button: 1 x Hardware WPS button
• Antenna: External antennas x 2 (2T2R)
• Dimensions: 174.54 (L) x 17.69 (W) x 14.42 (H) mm
• Weight: 15 g
• Wireless
• Standards:
• 2.4 GHz: IEEE 802.11b, 802.11g, 802.11n
• 5 GHz: IEEE 802.11ac, 802.11a, 802.11n
• Frequency band: 2.4000 ~ 2.4835GHz, 5.150 ~ 5.825GHz
• Maximum data rate:
• 11a: 6/9/12/24/36/48 / 54Mbps;
• 11b: 1/2 / 5.5 / 11 Mbps; 11g: 6/9/12/24/36/48 / 54Mbps
• 11n (20MHz): MCS0-07, up to 144Mbps
• 11n (40MHz): MCS0-07, up to 300Mbps
• 11ac (80MHz): VHTMCS0-9, up to 867Mbps
• Output power:
• 2.4 GHz:
• 11b (11 M): 11 ± 1.5 dBm, 11 g (54 M): 9 ± 1.5 dBm
• 11n (20 MHz, MCS7): 8 ± 1.5 dBm, 11n (40 MHz, MCS7): 8 ± 1.5 dBm
• 5 GHz:
• 11a (54M): 8 ± 1.5 dBm, 11n (20MHz, MCS7): 7 ± 1.5 dBm,
• 11n (40 MHz, MCS7): 7 ± 1.5 dBm, 11ac (80 MHz, VHTMCS9): 5 ± 1.5 dBm
• Receiver sensitivity:
• 2.4 GHz:
• 11b (11M): -80 ± 2dBm, 11g (54M): -68 ± 2dBm
• 11n (20MHz, MCS7): -66 ± 2dBm, 11n (40MHz, MCS7): -65 ± 2dBm
• 5 GHz:
• 11a (54M): -68 ± 2dBm, 11n (20MHz, MCS7): -65 ± 2dBm,
• 11n (40MHz, MCS7): -62 ± 2dBm, 11ac (80MHz, VHTMCS9): -52 ± 2dBm
• Security:
• WEP 64/128 bits, WPA, WPA2
• Hardware and software WPS setup
• Review date 29-01-2021 by MSB
