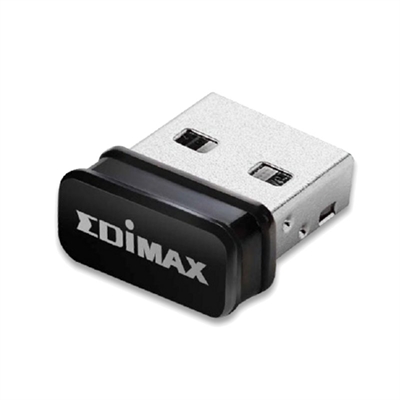

Edimax EW-7811ULC WiFi5 AC600 Nano Network Adapter

Discover the edimax EW-7811ulc WiFi5 Nano Nano adapter , a compact and efficient solution to improve your Internet connection. With Wifi 5 technology, this adapter offers speeds of up to 600 Mbps, ideal for streaming and online games. Its nano design allows easy transport and connection to any device, making it the perfect complement to your network needs.

Technical Specifications

• Brand Edimax
• Model EW-7811ULC
• Hardware – Interface: 1 x USB 2.0 Type A
• LED Indicator: 1 x Link/activity LED
• Antenna: 1 x Internal PIFA Antenna (1T1R)
• Wireless – Standard
• 2.4GHz: IEEE 802.11b/g/n
• 5GHz: IEEE 802.11a/n/ac
• Frequency Band
• 2.4GHz: 2.4000~2.4835GHz
• 5GHz: 5.150~5.825GHz
• Max. Data Rate/Speed
• 11a: Up to 54Mbps
• 11b: Up to 11Mbps
• 11g: Up to 54Mbps
• 11n (2.4GHz): Up to 200Mbps
• 11ac (5GHz): Up to 433Mbps
• Transmit Power
• 2.4GHz:
• 11b(11Mbps): 17±1.5dBm
• 11g(54Mbps): 14.5±1.5dBm
• 11n(20MHz, MCS7): 15±1.5dBm
• 11n(40MHz, MCS9): 14±1.5dBm
• 5GHz:
• 11a(54Mbps): 14±1.5 dBm
• 11n(20MHz, MCS7): 14±1.5dBm
• 11n(40MHz, MCS9): 14±1.5dBm
• 11ac(80MHz, MCS9): 13±1.5dBm
• Receive Sensitivity
• 2.4GHz:
• 11b(11Mbps): -86±2dBm
• 11g(54Mbps): -71±2dBm
• 11n(20MHz, MCS7): -69±2dBm
• 11n(40MHz, MCS9): -60±2dBm
• 5GHz:
• 11a(54Mbps): -67±2dBm
• 11n(20MHz, MCS7): -65±2dBm
• 11n(40MHz, MCS9): -57±2dBm
• 11ac(80MHz, MCS9): -52±2dBm
• Security
• WPA3-SAE (Personal), WPA2, WPA, WEP, 802.1x
• Software WPS (Wi-Fi Protected Setup. Driver installation and WPS supported Wi-Fi device are required.)
• Other Features – Supported Operating Systems
• Windows 10/11
• LinuxKernel 2.6.18 ~ 5.11
• Dimensions: 17.4 (length) x 15.0 (width) x 7.2 (height) mm (0.69 (length) x 0.59 (width) x 0.28 (height) inches)
• Weight: 2 g (0.07 ounces)
• Environment
• Operating Temperature: 0~40°C (32~104°F)
• Storage Temperature: -20~60°C (-4~140°F)
• Operating Humidity: 10~90 % (non-condensing)
• Storage Humidity: Max. 95% (non-condensing)
• Certification: CE, FCC, BSMI, NCC
• Revision Date 08-11-2022 by MPM
