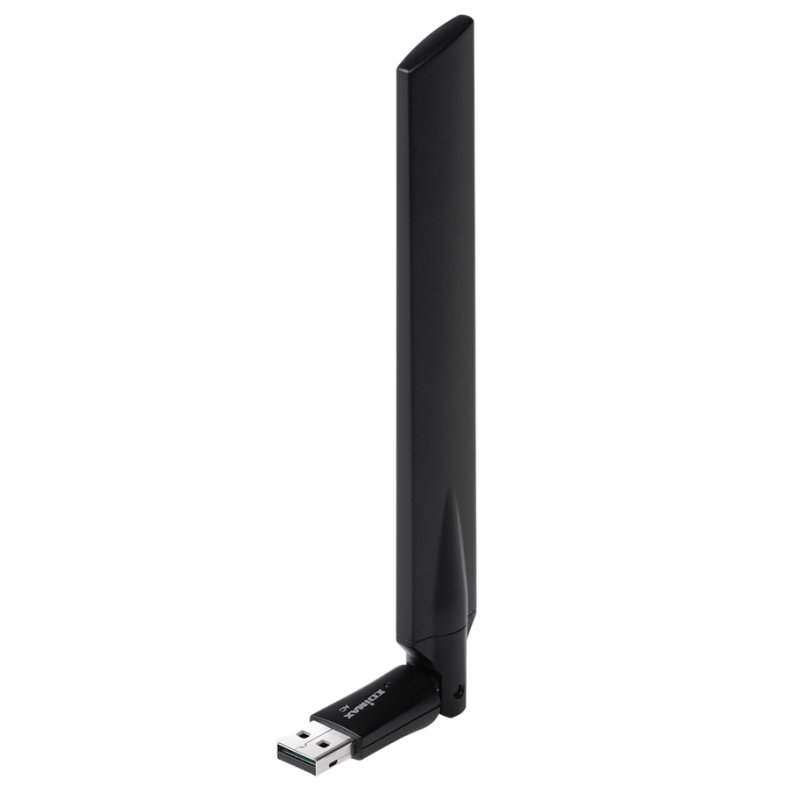

Edimax EW-7811UAC AC600 6dBi USB Network Adapter

Discover the EDIMAX EW-7811UAC RED AC600 6DBI ADAPTER USB , the perfect solution to improve your Internet connection. With its compact and powerful 6DBI antenna design, you will enjoy speeds of up to 600 Mbps, ideal for online games and high -definition video streaming. Adapter to a USB port and enjoy a quick and stable connection.

Technical Specifications

• EW-7811UAC
• High-gain Dual Band AC600 Wi-Fi USB Adapter
• Dual band wireless connectivity of 2.4 GHz or 5 GHz
• Max. Wi-Fi connection speeds of 150 Mbps (2.4GHz) or 433Mbps (5 GHz)
• Features a hardware WPS (Wi-Fi Protected Setup) button for easy wireless connections
• Easy setup wizard features
• Compatible with Windows XP/Vista/7/8/8.1, Linux, and Mac OS X drivers
• High-gain antenna, 4 dBi (2.4 GHz) and 6dBi (5 GHz), provides high-performance long-distance wireless connection

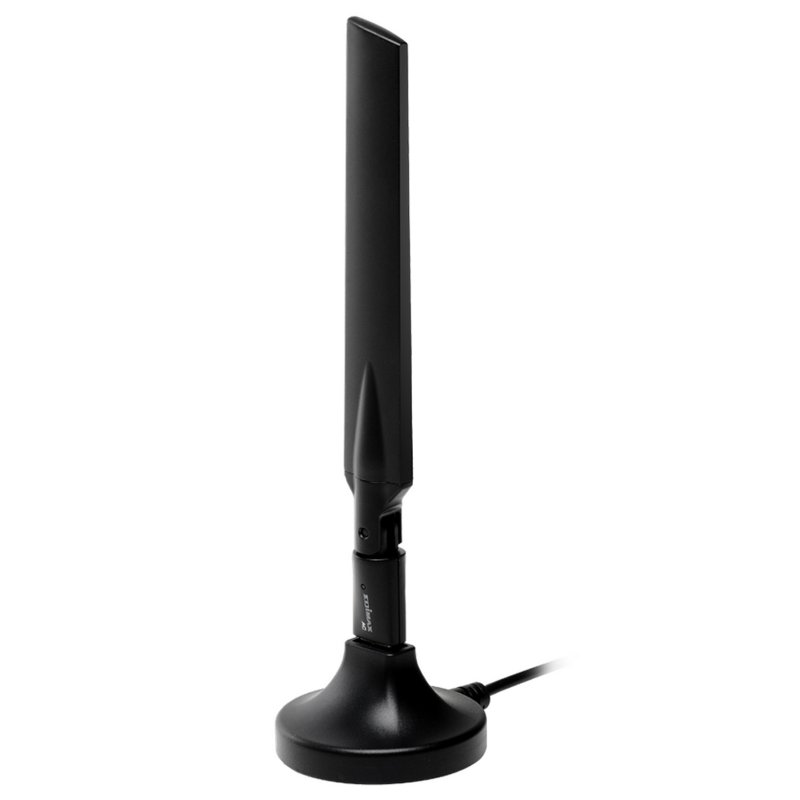

• USB base for flexible placement and better wireless signal
• Brand Edimax
• Model EW-7811UAC
• Features Interfaces
• 1 x USB 2.0 Type A
• 1 x Hardware WPS Button
• 1 x Link/Activity LED
• Standards
• 2.4GHz: IEEE 802.11b, 802.11g, 802.11n
• 5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n
• Frequencies
• 2.4000 – 2.4835GHz (subject to local regulations)
• 5.150 – 5.825GHz (subject to local regulations)
• Output Power
• 2.4GHz
• 11b (11Mbps): 17dBm±1.5dBm
• 11g (54Mbps): 15dBm±1.5dBm
• 11n (20MHz, MCS7): 14dBm±1.5dBm
• 11n (40MHz, MCS7): 14dBm±1.5dBm
• 5GHz
• 11a (54Mbps): 14dBm±1.5dBm
• 11n (20MHz, MCS7): 13dBm±1.5dBm
• 11n (40MHz, MCS7): 13dBm±1.5dBm
• 11ac (80MHz, MCS9): 12dBm±1.5dBm
• Installation
• Multi-language easy setup wizard
• Hardware WPS button for easy wireless connections
• Operating Range
• 11a: 6/9/12/24/36/48/54Mbps
• 11b: 1/2/5.5/11Mbps
• 11g: 6/9/12/24/36/48/54Mbps
• 11n (20MHz): MCS0-07 (up to 72Mbps)
• 11n (40MHz): MCS0-07 (up to 144Mbps)
• 11ac (80MHz): MCS0-09 (up to 433Mbps)
• LED
• Link/Activity
• Security
• WEP 64/128-bit, WPA, WPA2, 802.1x
• Hardware & Software WPS Configuration
• Other Features Temperature and Humidity
• Max. 95% (non-condensing)
• 32 – 104°F (0 – 40°C)
• Dimensions
• 190 (L) x 20 (W) x 7 (H) mm
• 18g
• Certifications
• CE/FCC
• Accessories

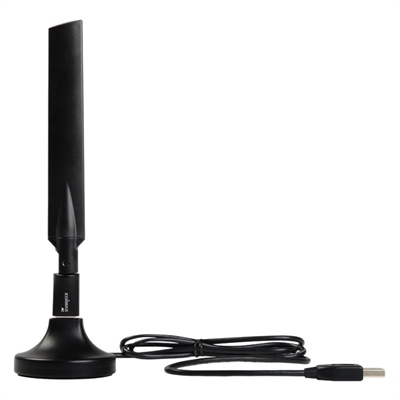

• 1 x USB cradle with 1.2 meter cable
• Review Date 08-07-2014 by DAV
