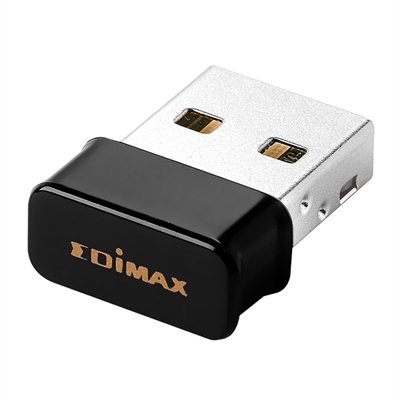

Edimax EW-7611ULB N150 WiFi + BT USB Network Card

Discover the edimax EW-7611ulb , the N150 + BT USB network card that offers you a quick and stable connection for your devices. Ideal for streaming and navigation, this card is perfect for those who seek to improve their experience in wireless networks . and simple with Bluetooth devices.

Technical Specifications

• USB Nano Adapter 2 in 1 N150 Wi-Fi and Bluetooth 4.0
• Wi-Fi N150: Complies with the 802.11b/g/n standard for wireless devices with data rates of up to 150 Mbps
• Bluetooth 4.0 and Bluetooth 3.0+HS (high speed): Up to 24 Mbps, 8 times faster than Bluetooth 2.0 or 3.0
• Smart Bluetooth: Advanced dual-mode Bluetooth 4.0 LE and BR/EDR
• Backward compatible: With Bluetooth 2.1+EDR and 3.0+HS
• Easy setup: Includes a multilingual assistant for easy setup and is compatible with WPS
• Wi-Fi Security: Supports WEP, WPA, and WPA2 encryption of 64/128 bits
• Energy saving: Compatible with QoS-WMM, WMM power-saving mode, and eco-friendly Bluetooth LE (low energy) technology

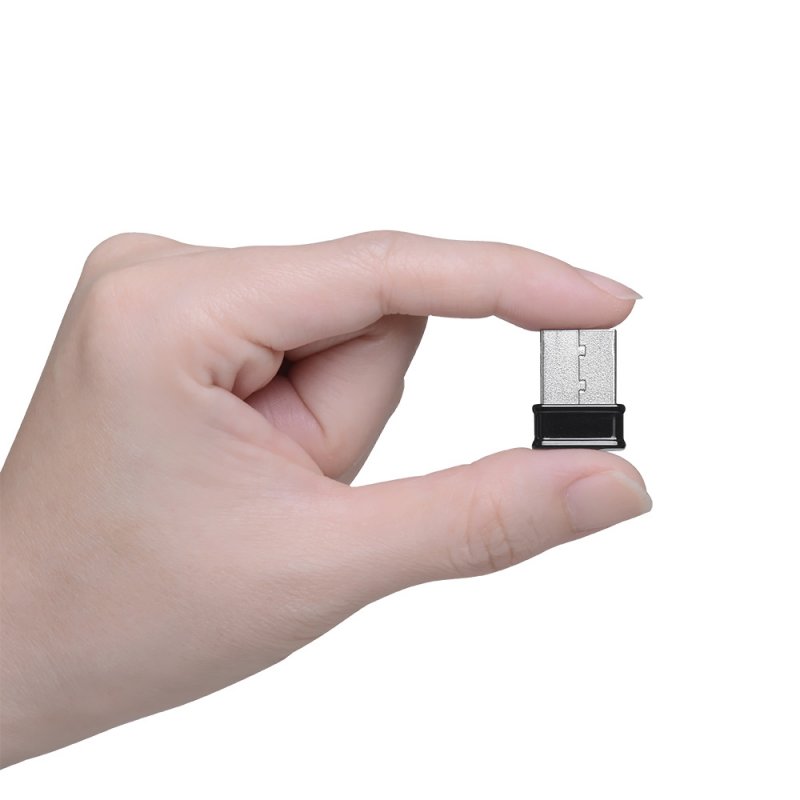

• Compact and portable design: Exceptionally miniaturized size
• Brand Edimax
• Model EW-7611ULB
• Hardware Features
• USB Type A port 1.0 / 2.0
• Internal antenna
• Link/activity LED
• Standard
• IEEE 802.11b, 802.11g, 802.11n
• Dual mode Bluetooth 4.0 BLE / 4.0
• Bluetooth 3.0 + HS
• Bluetooth 2.1 and 3.0
• Frequency Band
• Wi-Fi: 2.4000 ~ 2.4835GHz (medical scientific industrial band)
• Bluetooth: 2.4 ~ 2.4835GHz unlicensed ISM band
• Data Rate
• 11b: 1/2 / 5.5 / 11Mbps
• 11g: 6/9/12/24/36/48 / 54Mbps
• 11n (20MHz): MCS0-7 (up to 72Mbps)
• 11n (40MHz): MCS0-7 (up to 150Mbps)
• Bluetooth: up to 24Mbps
• Output Power
• 11b: 16 ± 1.5dbm
• 11g: 14 ± 1.5dbm
• 11n: 12 ± 1.5dbm
• Reception Sensitivity
• 11n (20MHz) @ MCS7: -64dBm ± 2dBm
• 11n (40MHz) @ MCS7: -64dBm ± 2dBm
• 11g @ 54Mbps: -65dBm ± 2dBm
• 11b @ 11Mbps: -79dBm ± 2dBm
• Security
• WEP 64/128-bit, WPA, WPA2, 802.1x
• WPS software setup
• Installation
• User-friendly setup wizard in multiple languages with auto-run setup
• Temperature and Humidity
• Operating: 10 ~ 90% (non-condensing)
• Storage: Max. 95% (non-condensing)
• Operating: 32 ~ 104 ° F (0 ~ 40 ° C)
• Storage: -4 ~ 140 ° F (-20 ~ 60 ° C)
• System Requirements
• Windows 7/8 / 8.1 / 10
• Linux and Mac OS
• Dimensions and Weight
• 7.1 (H) x 14.9 (W) x 18.5 (D) mm
• 3g
• Certification
• CE, FCC, WiFi, BQB
• Review Date 14-02-2017 by MSB
