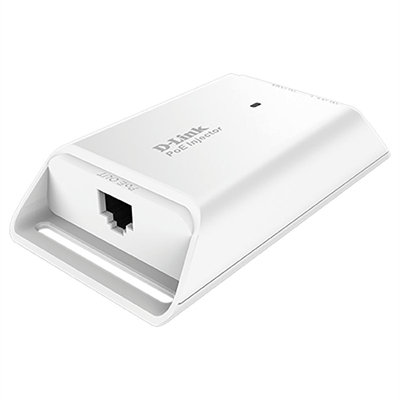

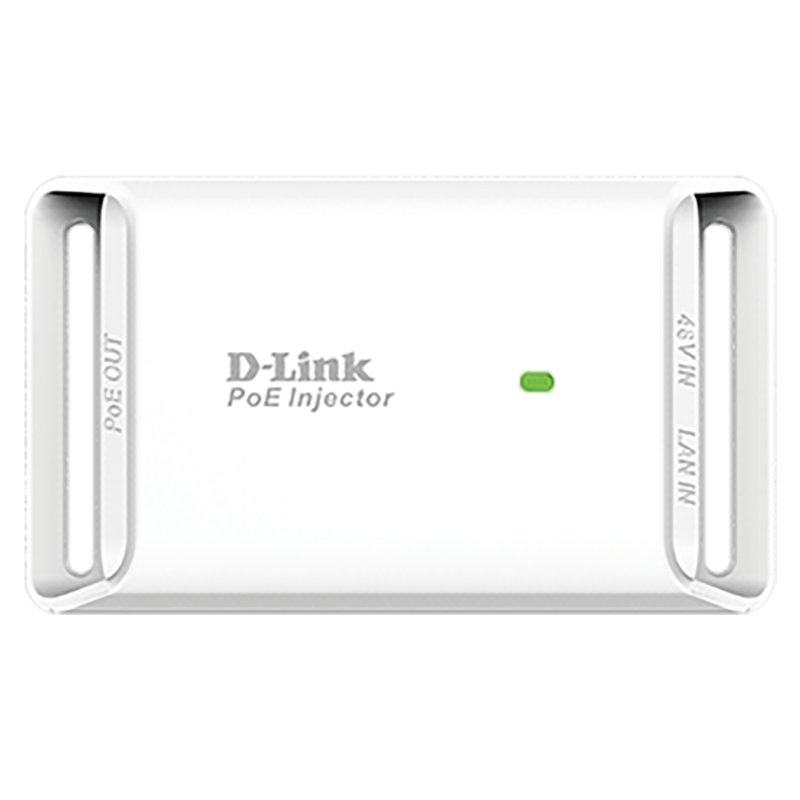

D-Link DPE-101GI 48V DC Gigabit PoE Injector

The D-Link DPE-101GI POE 48V DC Gigabit is the perfect solution to bring energy and data to network devices without the need for additional cables. Designed to be efficient and easy to install, this Poe injector is ideal for IP cameras, access points and other devices that require food through the Ethernet cable. and efficient.

Technical Specifications

• Simplicity
• Plug-and-Play with no software required
• Easy installation of PoE devices where there is no power outlet available
• Reduces installation and network equipment costs
• Provides power over existing network cabling to PoE devices such as access points, IP cameras, and IP phones
• Lightweight and compact
• 802.3af compatible with PoE output power of 0.4 A at 48 V
• Gigabit Connectivity
• The Power Over Ethernet (PoE) injector for 10/100/1000T connections provides power up to 100 meters (328 feet)
• Connect your devices at Gigabit speeds, all within a compact device
• Brand D-Link
• Model DPE-101GI

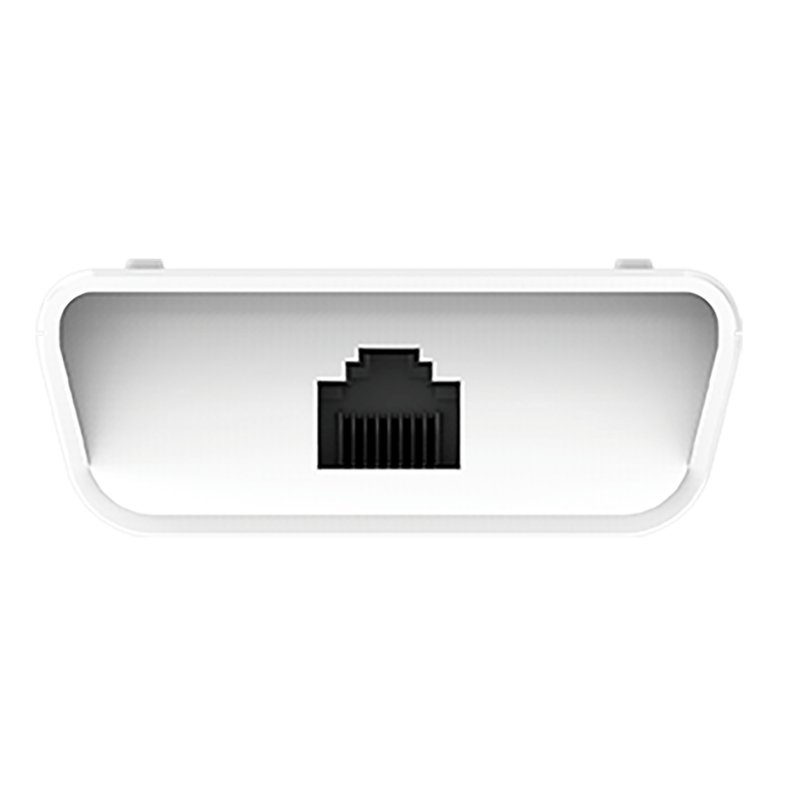

• Features P + Data Port (Output)
• Compatible with IEEE 802.3af
• Supports half/full duplex operation
• Compatible with IEEE 802.3
• Compatible with IEEE 802.3u
• Compatible with IEEE 802.3ab
• 10/100/1000BASE-T port

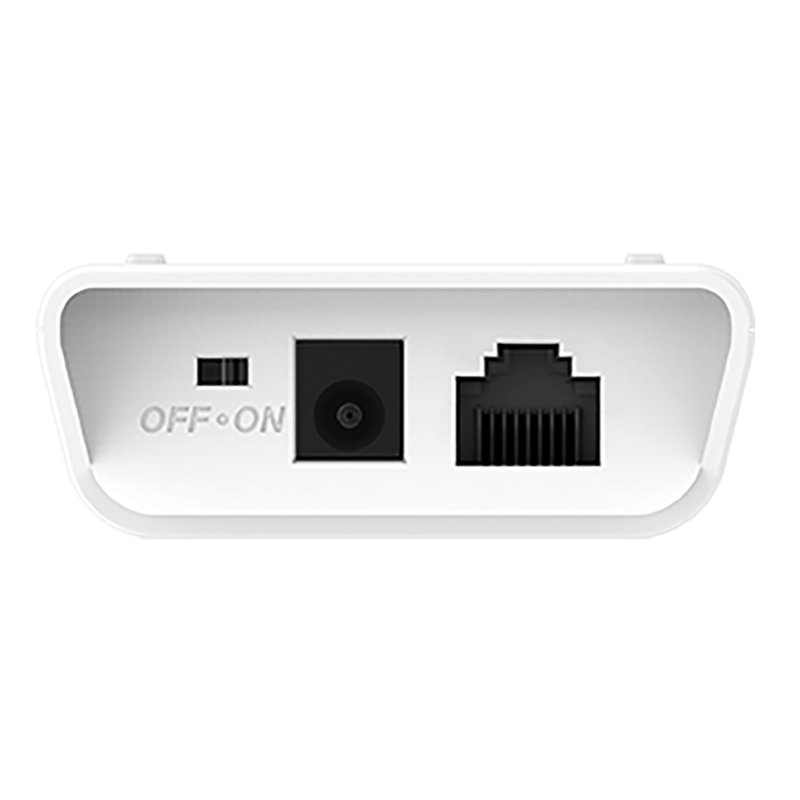

• Data Port (Input)
• Supports half/full duplex operation
• Compatible with IEEE 802.3
• Compatible with IEEE 802.3u
• Compatible with IEEE 802.3ab
• 10/100/1000BASE-T port
• Physical
• Dimensions (L x W x H): 109.8 x 62.2 x 24.5 mm
• Weight: 65 grams
• Power
• Consumption: 19.2 watts max.
• Output: 0.4 A at 48 V
• Temperature
• Operating: 0 to 50 °C (32 to 122 °F)
• Storage: -20 to 70 °C (-4 to 158 °F)
• Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 90% non-condensing
• Certifications
• CE
• FCC
• VCCI
• C-Tick
• IC
• Review date 14-07-2017 by MSB
