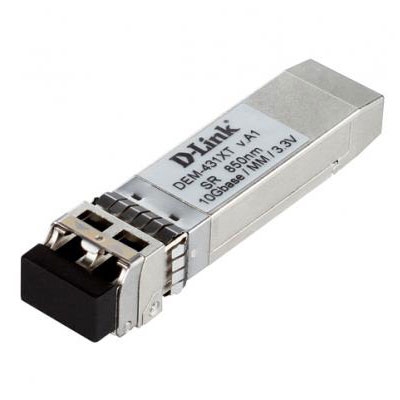

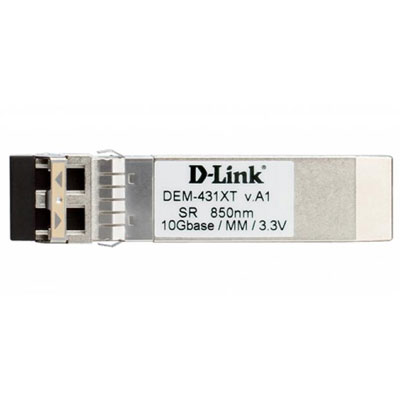

D-Link DEM-431XT SFP+ Module 10GB 300m

Discover the D-Link DeM-431XT SFP+ 10GB 300m module, the ideal solution to improve your network connectivity with a speed of up to 10 Gbps. This SFP+ module provides exceptional performance and is compatible with various platforms, ensuring an integration without problems in your network infrastructure.

• Transmission range of up to 300 meters for high-speed connections. that seek a quick and efficient solution.

Technical Specifications

• The D-Link 10G SFP+ module series are hot-swappable (Hot-Swap) SFP+ transceivers that connect to the SFP+ slots of switches and support 10G Ethernet. The D-Link 10G SFP+ module series are SFP+ transceivers that offer customers a wide variety of 10G Ethernet connectivity options for data centers, wiring closets, enterprise applications, and transport service providers.
• Enhanced Small Form-Factor Pluggable
• The transceivers use the Small Form-Factor Pluggable (SFP+) format. The SFP+ format is smaller than other formats such as Xenpak, X2, and 10G XFP, ensuring lower costs, less power disruption, and higher port density. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, so that the port can receive data from the cable network.
• 10G Ethernet Speeds
• The transceivers support 10G Ethernet, resulting in very fast data transmissions of up to 10 Gbit/s. This is 10 times faster than Gigabit Ethernet and allows the switch to handle faster and higher data transmissions, making it very suitable for business needs.
• Brand DLink
• Model DEM-431XT
• Features
• Hot plug: yes
• Certifications: RoHS and MSA
• MAC address update: yes
• DDM (Digital Diagnostic Monitor): yes
• Speed: 10 Gbps
• Interface
• Connector:
• Duplex LC Connector
• Uni/Bi-Directional:
• Unidirectional
• Wavelength:
• 1310 nm
• Optical output power
• Maximum: -1dBm
• Minimum: -5 dBm
• Optical input power:
• Maximum: 0.5 dBm
• Minimum: -11.1 dBm
• Sensitivity:
• 6.5 dBm
• Cable type:
• Multi-mode 50/125 μm
• 62.5/125 um fiber
• Other features
• Weight:
• 22 g.
• Dimensions:
• 14.8 x 56.5 x 11.85 mm. (SFF8432)
• Review date 04-03-2015 by J4V
