Cougar Forza 85 Fan

The Cougar Forza 85 fan is the perfect solution for those who seek a balance between performance and design in the cooling of their systems. With an 85 mm diameter, this compact fan offers an exceptional air flow and silent operation, ideal for users who want to maintain their fresh components without sacrificing tranquility in the environment.

Designed with cutting -edge technology, Forza 85 has aerodynamic blades that optimize air circulation, allowing more efficient cooling. Its high quality engine ensures a long shelf life, while its low energy consumption makes it an ecological and economic option. In addition, the fan is equipped with long -term bearings that minimize friction and noise, guaranteeing soft and silent operation even in maximum loads.

Aesthetically, Cougar Forza 85 does not disappoint. Its modern and elegant design adapts to any type of configuration, with LED lighting that can be customized to complement the aesthetics of your equipment. The installation is simple and fast, thanks to its versatile assembly system that adapts to most computer boxes.

Either to improve the cooling of your Gaming PC, workstation or any other device that requires an effective air flow, the Cougar Forza 85 fan is the ideal option. With its combination of performance, durability and style, this fan will become an essential component to maintain your system in optimal conditions.

Technical Specifications

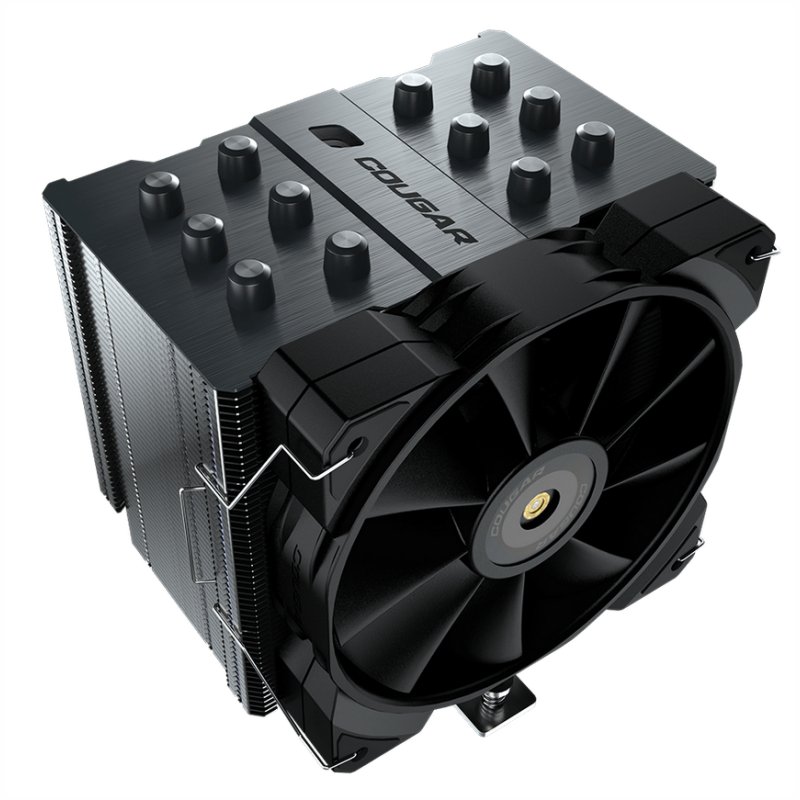

• FORZA 85
• Premium Single-Tower CPU Air Cooler
• As a mid-to-high-end single-tower CPU air cooler, Forza 85 with its uniquely designed front cover, along with the high-performance COUGAR MHP120 fan, provides users with an optimal balance between ultra-quiet operation and extreme cooling. Forza 85 is absolutely designed for most performance users. (minor overclocking capable)
• Elegant Heat Pipe Cap Decoration
• The Forza 85 air cooler is designed with an elegant heat pipe cap decoration. Not only does it increase the aesthetics of the entire cooling tower, but it also prevents oxidation on the heat pipe from coming into contact with the air. Through the cap design, Forza 85 offers both appearance and performance, truly impressive!

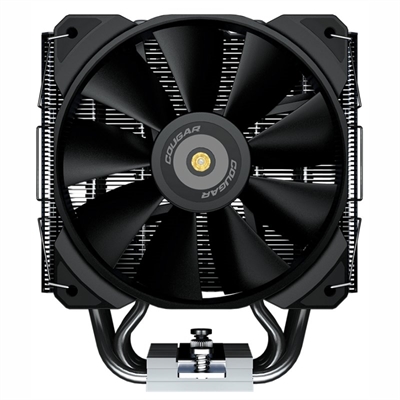

• Extremely Hyper-Fanatic. With 2000 RPM (max.)
• Forza 85 is equipped with a high-performance COUGAR MHP 120 fan. With the motor hub reinforced with durable metal and the metal bearing housing design, as well as a fan speed capable of reaching up to 2000 rpm, COUGAR MHP 120 provides high airflow and high static pressure to achieve an optimal balance between ultra-quiet operation and extreme cooling. What makes it the perfect companion with Forza 85 that offers exceptional performance.
• Vacuum Tunnel Design
• To further improve the heat dissipation efficiency, Forza 85 is designed with a 90-degree twisting shape at both ends of the heat sink fins. This enclosed space design creates an air tunnel that closes the airflow from the sides of the radiator and, in turn, causes different air pressure on both sides of Forza 85. This air pressure difference increases the airflow through the fins to maximize the cooling efficiency.

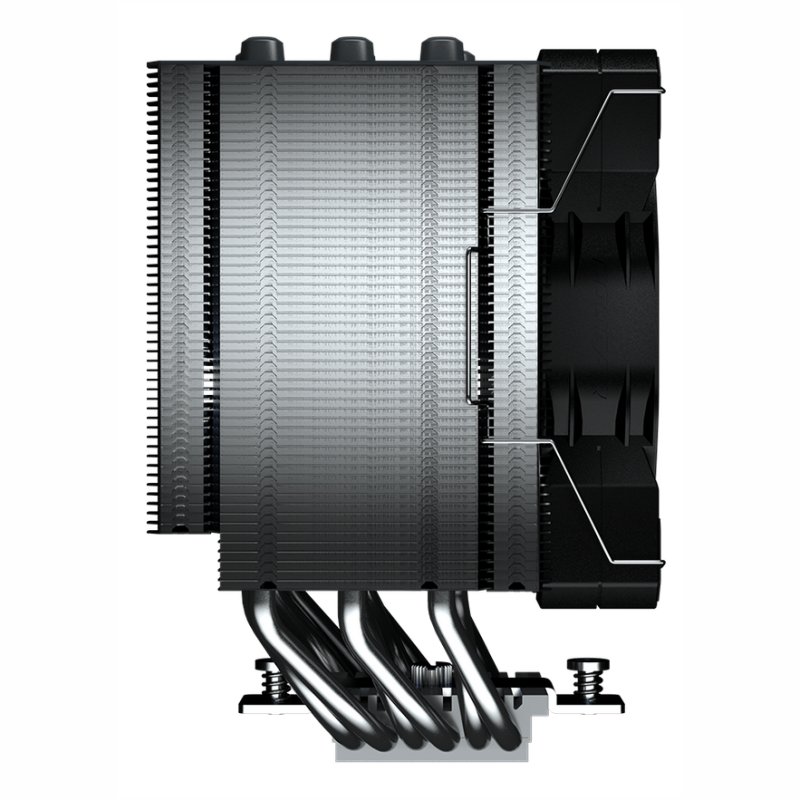

• Nickel-Plated Copper Base
• With 6 heat pipes and a polished copper surface, reflow soldering craftsmanship, and six heat pipes with a diameter of 6 mm, Forza 85 provides excellent heat dissipation capacity, sufficient for most users.
• Excellent Compatibility
• Through design checks and installation tests, Forza 85 has superior component compatibility in RAM/GPU (including LGA1700/LGA2011/2066 sockets) of most brands with ease. Users can choose their components of choice without any worry.
• Less than 160 mm Height
• Forza 85 can be installed in most mid-tower multifunctional chassis that support ATX/E-ATX motherboards with a height restriction of up to 160 mm, making Forza 85 an excellent option for PC DIY enthusiasts.
• Dual Fan
• Forza 85 comes with an additional set of fan clips that allows a second 120 mm fan of any brand to increase the heat dissipation efficiency of Forza 85.
• Easy-to-Use Installation
• To improve the overall installation experience, Forza 85 comes with a set of INTEL/AMD mounts that can be easily installed in a few steps. A screwdriver is also included in the package for users to use directly without any prior requirement.
• Brand Cougar
• Model 3MFZA85.0001
• Features Heat Sink
• CPU base: Nickel-plated copper base
• Heat pipe diameter: 6 mm
• Number of heat pipes: 6 units
• Heat pipe finish: Nickel-plated copper
• Craftsmanship: Reflow
• Dimensions (width x depth x height): 85 x 135 x 160 mm
• Weight: 958g
• Weight including Fan: 1160 g
• Fan
• Fan model: MHP120
• Dimensions (W x D x H): 120 x 120 x 25 mm
• Fan speed: 600-2000 RPM ± 200 RPM
• Airflow: 82.48 CFM / 143.53 m3/h (± 10 %)
• Air pressure: 4.24 mm H2O±10 %
• Acoustic noise: 34.5 dB(A) (max.)
• Rated voltage: 12 VDC
• Rated current: 0.23 A
• Power consumption: 2.76 W ± 10 %
• Bearing type: Hydrodynamic HDB bearing
• Cable length: 200 mm
• Connector and control: 4-pin PWM
• CPU Socket: Intel Socket LGA 115X / 1366 / 1200 / 1700 / 2011 / 2066 (Core i3 / i5 / i7 / i9 CPU)
• AMD AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU
• Revision Date 06-09-2022 by MPM
