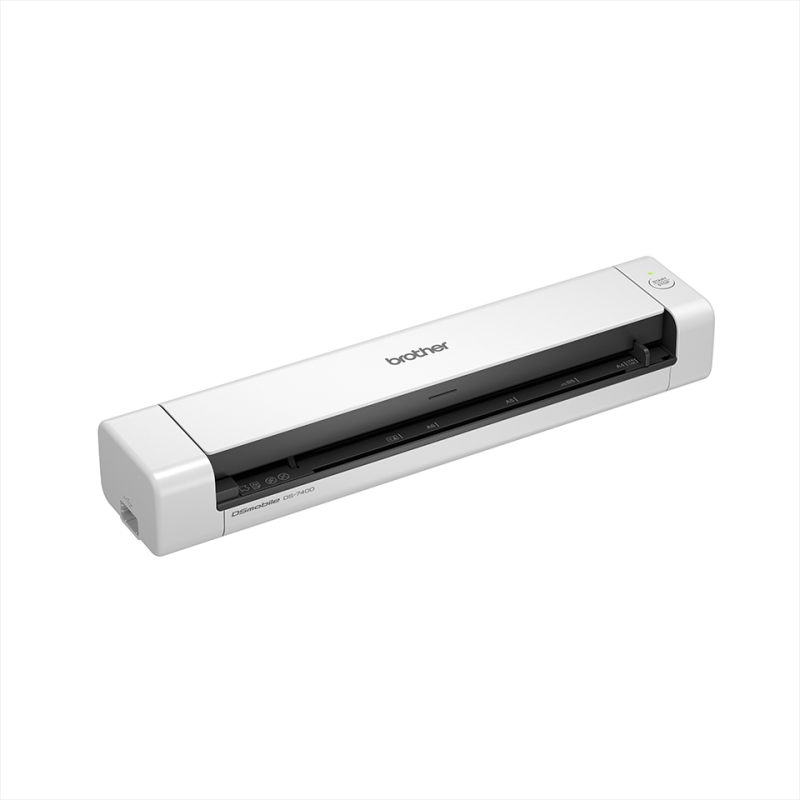

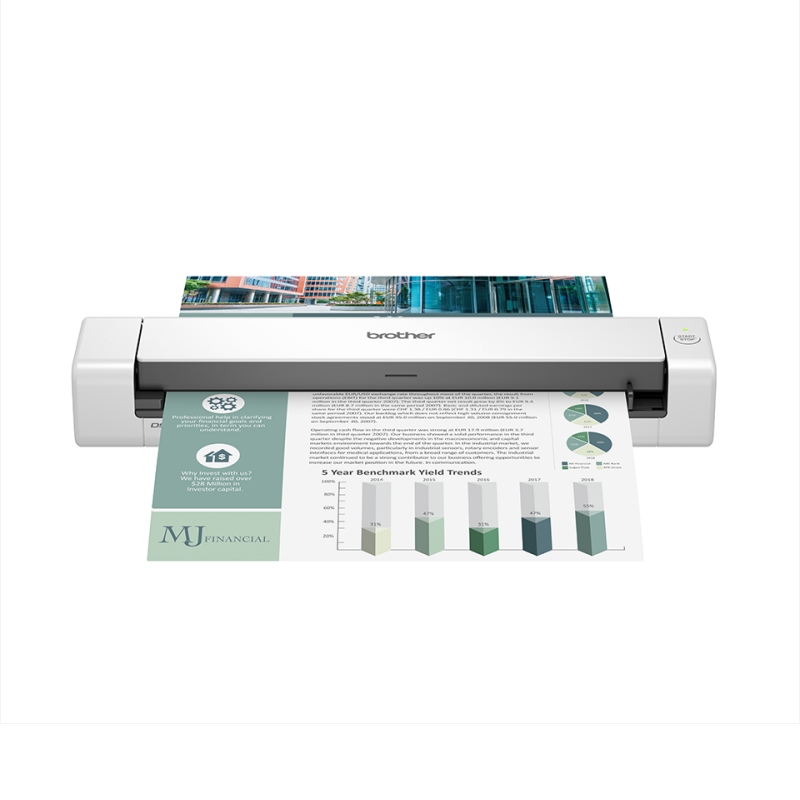

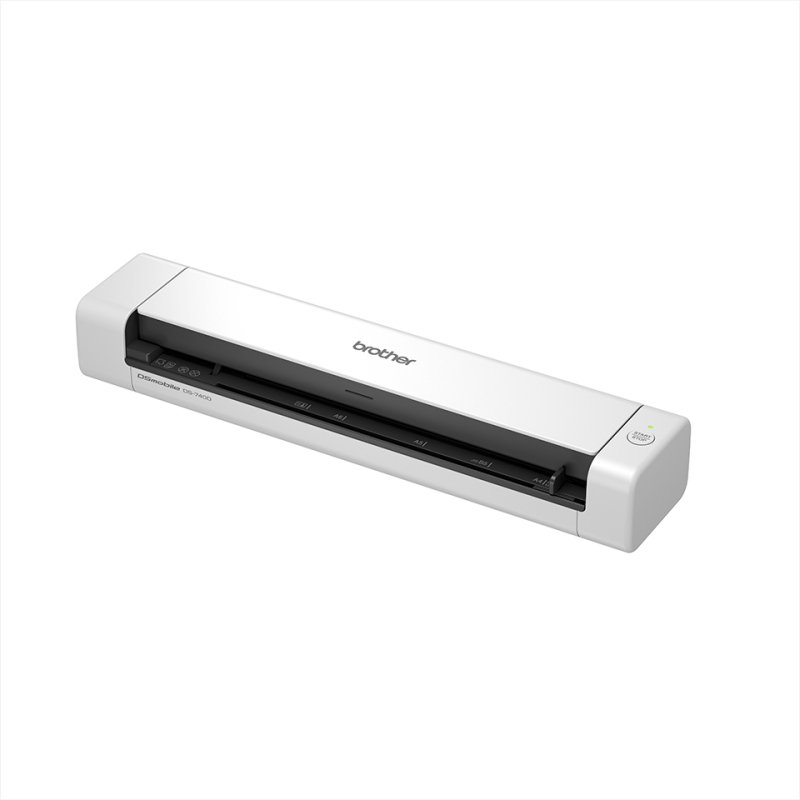

Brother Scanner DSmobile DS740D A4 Duplex Colour

The Brother DSMobile DS740D scanner is a portable and efficient solution designed to meet the scanning needs in motion. With a compact and light design, this A4 Duplex color scanner is ideal for professionals who require a versatile and high quality tool to digitize documents anywhere.

With the ability to scan on both sides of the page simultaneously, the DS740D saves time and improves productivity. Its scan speed of up to 16 pages per minute allows to handle large volumes of documents effortlessly. In addition, it offers an optimal resolution of up to 600 x 600 DPI, guaranteeing that each image and text are captured with clarity and precision.

The scanner is compatible with various file formats, including PDF and JPEG, which facilitates the management and storage of digital documents. Thanks to its USB connectivity, it can be easily used in laptops and computers without the need for an external power supply, which makes it the perfect partner for work trips or reduced office environments.

The included software allows you to perform tasks of editing and organization of documents in a simple way, while its robust design ensures durability and resistance. With the Brother DSMobile DS740D, you will have the perfect tool to keep your documents organized and accessible, without sacrificing space or comfort. Ideal for lawyers, counters, and any professional who needs to scan documents quickly and efficiently, this scanner is an intelligent investment to optimize your workflow.

Technical Specifications

• DS-740D
• Color duplex scanner for professionals who need to scan documents in limited spaces or when they are out of the office.
• Scans business cards, plastic cards, photos, tickets, or A4 documents easily. “U-path” feeding system for scanning in reduced spaces.
• Main features
• Automatic duplex
• 15hpm / 30ppm in A4 at 300 ppi (color and monochrome)
• USB 3.0 power
• Windows and Mac drivers
• Professional software package included
• Scans to: Image, email, file, printer, shared network folder, and OCR
• Brand Brother
• Model DS740DTJ1
• Type – Portable scanner
• General – Battery: No
• Control panel: LED, keyboard
• Connectivity – USB interface: Super Speed micro USB 3.0 Type B
• Scanning – Automatic duplex scanning (up to A4)
• Scans to: Email, File, Image, OCR
• Color A4 scanning speed: 30 ppm
• Color depth: 24 bit
• Drivers: Windows: TWAIN, WIA, Windows 7, 8.1, 10 (32 & 64 bit editions), Windows Server 2019, 2016, 2012R2, 2012, macOS: ICA 10.12.x, 10.13.x, 10.14.x Linux: SANE. At https://support.brother.com/ you will find the latest firmware, software, and operating system compatibility updates.
• Grayscale: 256
• ICA compatibility
• Interpolated scanning resolution: 1200 x 1200 ppi
• Scanning functions: Image quality: Grayscale level adjustment, Black and white level adjustment, Color tone adjustment, Color elimination, Edge filling, Document hole removal, Character definition. Document corrections: Automatic alignment, Automatic paper size detection, Automatic image rotation, Background setup, Edge filling, Automatic color detection, Blank page elimination, Margin adjustment, Continuous scanning, 2-in-1 scanning
• Scans to: Cloud, Email, File, Image, OCR
• WIA compatibility
• Other features Power consumption
• Operation: 2.9 watts
• Standby mode: 1.4 watts
• Shutdown: 0.01 watts
• Sound power level: 53 dB
• Sound pressure level: 42 dBA
• Environment
• Operating humidity: 20 to 80%
• Operating temperature: 5 – 35C
• Support specifications
• Types and weights: Individual paper size: Width 50.8 – 215.9mm, Length 86.4 – 1828.8mm; Card (horizontal): Width 85.6 and Length 53.98mm; Thickness of card with relief (face up) up to 1.24mm; Plastic card thickness up to 1mm; Receipts: Width 74 – 79.38mm, Length 105 – 355.6mm
• Sizes: 35 – 270 g/m2, “U-path” feeding system: 52 – 80 g/m2
• Operating systems and software
• Included software – Mac: iPS for macOS, Remote Setup, NewSoft® Presto!® BizCard 7
• Included software – Windows: iPS for Windows PC, Nuance® PaperPort SE 14, Kofax Power PDF Standard v3, Remote Setup, NewSoft® Presto!® BizCard 6
• Solutions
• Dropbox
• Google Drive
• iPrint&Scan
• Dimensions and weights
• With box: 377(W) x 162(D) x 76(H) mm
• With box: 1022 g
• Without box: 301(W) x 63(D) x 45.3(H) mm
• Weight: 646 g
• Consumables and accessories
• Plastic card carrier sheet: Carrier sheet (CSA3401)
• Receipt carrier sheet: Carrier sheet (CSA3401)
• Includes
• Others: DSmobile DS-740D, Warranty
• Product safety guide
• USB cable
• Quick setup guide
• Revision date 27-02-2020 by MSB
