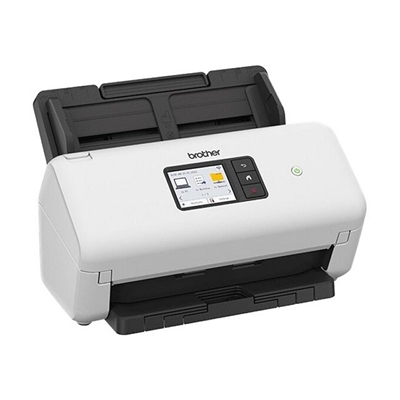

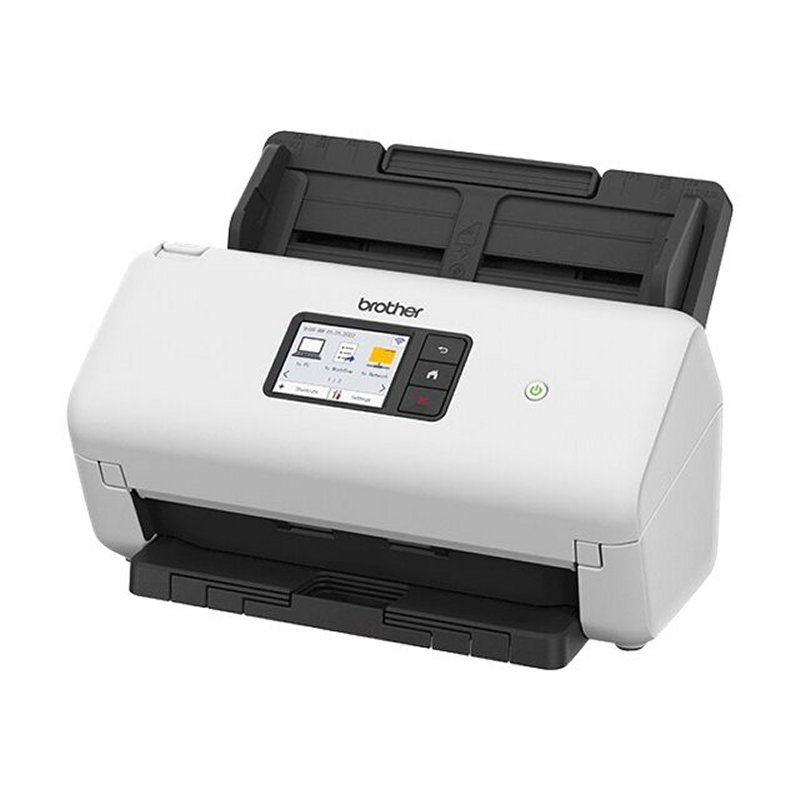

Brother ADS4500 Duplex WiFi Network Scanner

The Brother ADS4500 scanner is the perfect solution for jobs and work environments that require efficiency and high quality in documents digitalization. With its duplex scanning capacity, this device can capture images of both sides of a document in a single pass, which saves time and increases productivity. Its scan speed up to 24 pages per minute ensures that even the most bulky works are carried out quickly and effectively.

One of the most prominent features of ADS4500 is its Wi-Fi connectivity, which allows easy integration to wireless networks, facilitating access and use shared on multiple devices. In addition, it has scan options to several destinations, such as email, FTP, or even cloud applications, which provides unimportant flexibility to manage digitized documents.

The scanner is designed thinking about the ease of use, with an intuitive control panel and an LCD screen that allows you to navigate the different functions in a simple way. Its compact design allows you to adjust without problems in any work space, while the entrance tray can house up to 50 documents.

With exceptional scan quality and the ability to handle different types of documents, from identification cards to A4 -size documents, Brother ADS4500 becomes an indispensable ally for any business that seeks to optimize its workflow and reduce paper use. With this scanner, the digital transformation of your office is just a scan away.

Technical Specifications

• Brand Brother
• Model ADS4500WRE1
• General Features
• Type: Desktop document scanner
• Additional functions: Email, scan to cloud, scan and send to USB, scan and send to FTP,
• scan and save to network directory, scan and save to PC
• Max. document size supported: 215.9 x 355.6 mm
• Connectivity
• USB 2.0 (Host)
• USB 3.0
• LAN
• Scanner
• Input type: Color
• Grayscale depth: 8 bits (256 colors)
• Color depth: Color 48 bits
• External color depth: 24 bits (16.7 million colors)
• Optical resolution: 600 dpi x 600 dpi
• Interpolated resolution: 1200 dpi x 1200 dpi
• Automatic duplex: Yes
• Scan sensor type: Dual CIS
• Lamp type / light source: LED
• Maximum scanning speed for B/W documents: 35 ppm
• Maximum scanning speed for color documents: 35 ppm
• Duty cycle: 5250 scans per day
• Scanner speed data:
• 35 ppm – Black and white – A4
• 35 ppm – color – A4
• 70 ipm – duplex – Black and white
• 70 ipm – duplex – color
• Scanner functions: Scan to portable USB drive, Automatic Separation, automatic page size detection, skip blank pages,
• Auto Deskew, Remove Background, Long Document Scanning, One-Touch button, automatic image rotation, 7.1 cm LCD touchscreen
• Compliance standards: TWAIN, WIA, SANE
• Media Handling
• Maximum document size: 215.9 mm x 355.6 mm
• Types of documents supported: Plain paper, business card, plastic card
• Document size details supported: ADF – up to 215.9 x 355.6 mm
• Document feeder type: Automatic
• Document storage capacity: 60 sheets
• Power Consumption
• Power supply device: Internal power supply
• Required voltage: AC 100-240 V (50/60 Hz)
• Power consumption during operation (standby): 25 watts
• Standby power consumption: 7.3 watts
• Power consumption off: 1.7 watts
• Dimensions and Weights
• Width: 29.9 cm
• Depth: 19 cm
• Height: 21.6 cm
• Weight: 2.6 kg
• Environment
• Minimum operating temperature: 5 °C
• Maximum operating temperature: 35 °C
• Operating humidity range: 20 – 80%
• Sound emission: 59 dB
• Review date 05-05-2022 by MPM
