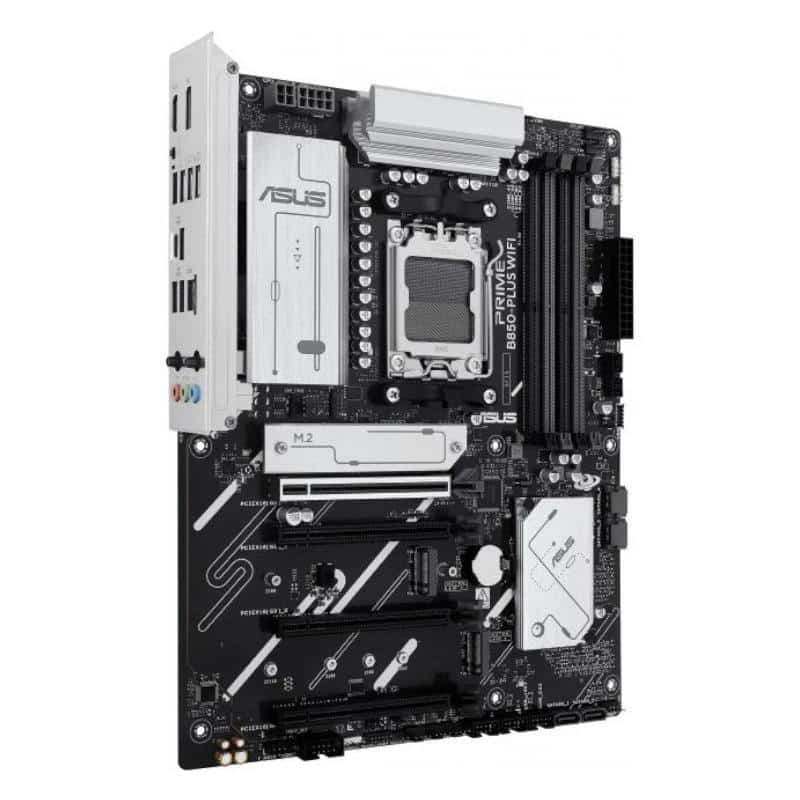

ASUS Placa Base PRIME B850 PLUS WIFI ATX AM5
173,11 €
Robust motherboard with integrated Wi-Fi for optimized performance in AMD AM5 systems.
Shipping Cost & Delivery Time
The ASUS PRIME B850 PLUS WIFI ATX AM5 motherboard provides a solid platform for building your high-performance PC. Supporting AMD AM5 processors, this motherboard ensures a fast and efficient computing experience, making it ideal for gamers and professionals who demand top-tier performance. The integrated Wi-Fi facilitates wireless connectivity, eliminating the need for external adapters.nnMoreover, the PRIME B850 PLUS is equipped with multiple expansion options, including PCIe slots for graphics cards and additional devices, allowing for customization and future upgrades. The quality construction and durable components ensure a long lifespan, making it a reliable choice for any modern computer setup.
Specifications
| Brand | Asus |
| Model | Prime B850M-PLUS-WiFi (90MB1L80-M0EAY0) |
| Platform | – ATX ( 30.5 cm x 24.4 cm ) |
| Chipset | – AMD B850 |
|
CPU
Supported
|
– Supports AMD Ryzen 9000 & 8000 & 7000 Series with AMD AM5 Socket |
| Memory | – 4 DIMM slots, max. 256 GB, DDR5. Supports up to 8000+ MT/s with Ryzen series 9000, 8000, and 7000 processors – Dual channel memory architecture – Compatible with AMD extended profiles for overclocking (EXPO) – ASUS enhanced memory profile (AEMP) |
|
Expansion Slots
|
– 1 x PCIe 5.0 x16 (compatible with x16) – 1 x PCIe 4.0 x16 (compatible with x8/x4) – 1 x PCIe 4.0 x16 (compatible with x4) – 2 x PCIe 3.0 x16 slots (compatible with x1) |
| Graphics | – 1 x DisplayPort – 1 x HDMI port |
|
I/O Ports,
Connectors
|
Internal
– 1 x 4-pin CPU fan connector
– 1 x 4-pin CPU OPT fan connector – 1 x 4-pin AIO pump connector – 4 x 4-pin chassis fan connectors – 1 x 24-pin main power connector – 1 x 8-pin +12 V CPU power connector – 1 x 4-pin +12 V CPU power connector – 3 x M.2 slots (Key M) – 4 x SATA 6 Gb/s ports – 1 x USB 5 Gbps connector (compatible with USB Type-C) – 1 x USB 5 Gbps connector (compatible with 2 additional USB 5 Gbps ports) – 3 x USB 2.0 connectors (compatible with 6 additional USB 2.0 ports) – 3 x Gen 2 addressable RGB connectors – 1 x CMOS clear connector – 1 x chassis intrusion detection connector – 1 x COM port connector – 1 x front panel audio connector (F_AUDIO) – 1 x S/PDIF out connector – 1 x SPI TPM connector (14-1 pins) – 1 x 10-pin system panel connector – 1 x Thunderbolt connector (USB4) External
– 1 x USB 10 Gbps port (1 USB Type-C) |
|
Other
Features
|
Storage
– Supports 3 M.2 slots and 4 SATA 6 Gb/s ports – M.2_1 slot (Key M), type 2280 (compatible with PCIe 5.0 x4) – M.2_2 slot (Key M), type 2280 (compatible with PCIe 4.0 x4) – M.2_3 slot (Key M), type 2242/2260/2280/22110 (compatible with PCIe 4.0 x2) – 4 x SATA 6 Gb/s ports USB – 4 x USB 10 Gbps ports (3 Type A + 1 USB Type C) – 2 x USB 5 Gbps ports (2 Type A) – 2 x USB 2.0 ports (2 Type A) – 1 x USB 5 Gbps connector (compatible with USB Type C) – 1 x USB 5 Gbps header compatible with 2 additional USB 5 Gbps ports – 3 x USB 2.0 headers compatible with 6 additional USB 2.0 ports Network – 1 x Realtek 2.5Gb Ethernet – ASUS LANGuard – Wi-Fi 6E (802.11ax) – Bluetooth v5.3 Audio |
| Review Date | 12-11-2025 by IS |
Additional information
| Weight | 1,635 kg |
|---|
