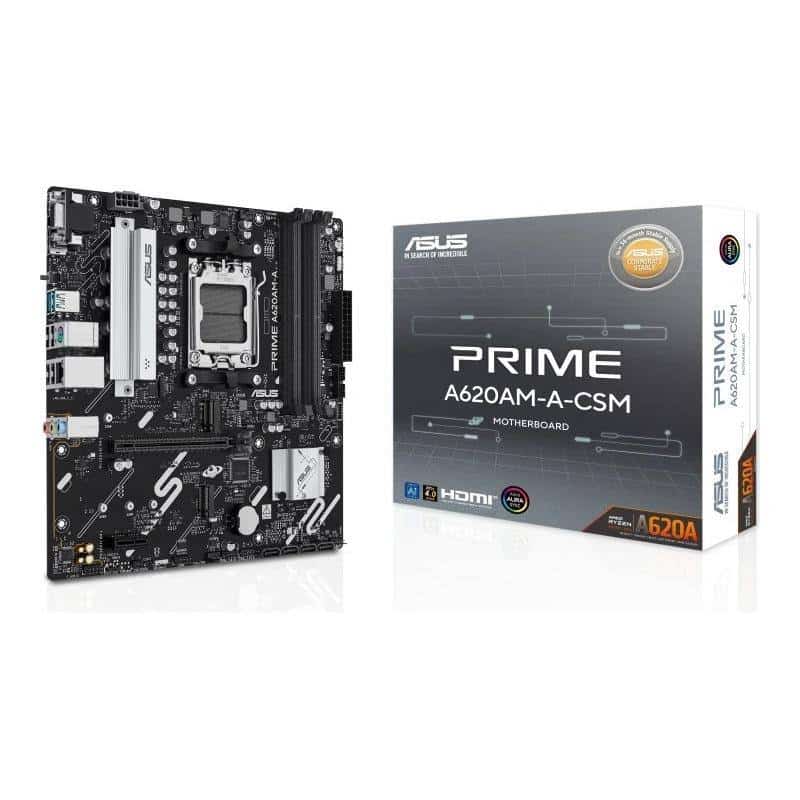

Name: ASUS Placa Base PRIME A620AM-A-CSM mATX AM5
Brand: Asus
SKU: ICP04098
Availability: InStock

The ASUS PRIME A620AM-A-CSM mATX AM5 motherboard provides a robust platform for building systems with AMD AM5 processors. With an optimized design, it supports DDR5 memory and various connectivity options, ensuring a smooth and efficient user experience.nnIdeal for gamers and professionals alike, this motherboard integrates advanced features that enhance system stability and performance. Its quality construction ensures durability, while thermal management features keep components at optimal temperatures during extended use.

Specifications

Brand	Asus
Model	90MB1MY0-M0EAYC
Platform	– micro-ATX (24.4 cm x 24.4 cm)
Chipset	– AMD A620A
Supported CPU	AMD AM5 socket for AMD Ryzen desktop processors series 9000, 8000, and 7000* * Please check https://www.asus.com/support/download-center/ for the list of compatible CPUs.
Memory	– 4 x DIMM slots, max. 256 GB, DDR5 – Supports up to 7600+ MT/s (OC) with Ryzen processors from series 9000, 8000, and 7000 – Unbuffered ECC and non-ECC DIMM* – Dual channel memory architecture – Compatible with AMD extended profiles for overclocking (EXPO™) – ASUS Enhanced Memory Profile (AEMP) * Compatible memory types, data transfer speeds, and the number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/memory compatibility list on the Support tab of the product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of available memory products on the market. * Unbuffered DDR5 and non-ECC memory supports the built-in ECC function in the chip.
Expansion Slots	– 1 x PCIe 4.0 x16 slot – 1 x PCIe 4.0 x16 slot (supports x4 mode) – 1 x PCIe 4.0 x16 slot (supports x1 mode)
Graphics	– 1 x DisplayPort – 1 x VGA port – 1 x HDMI port * Graphics specifications may vary depending on the CPU type. Please refer to the AMD CPU specifications. Supports a maximum resolution of 8K at 30 Hz, as specified in DisplayPort 1.4. * Supports a resolution of 4K at 60 Hz, as specified in HDMI 2.1.
I/O Ports, Connectors	Internal I/O Connectors – Cooling and ventilation connections 1 x 4-pin CPU fan connector 2 x 4-pin chassis fan connectors – Power connections 1 x 24-pin main power connector 1 x 8-pin +12 V CPU power connector – Storage connections 2 x M.2 slots (M key) 4 x SATA 6 Gb/s ports – USB 1 x 5 Gbps USB connector (compatible with USB Type-C) 1 x 5 Gbps USB connector supporting 2 additional 5 Gbps USB ports 2 x USB 2.0 connectors supporting 4 additional USB 2.0 ports – Others 3 x Gen 2 addressable RGB connectors 1 x CMOS clear connector 1 x COM port connector 1 x front panel audio connector (F_AUDIO) 1 x S/PDIF output connector 1 x SPI TPM connector (14-1 pins) 1 x front panel system connector (10-1 pins) Rear I/O Panel – 2 x 10 Gbps USB ports (2 x Type A) – 4 x USB 2.0 ports (4 x Type A) – 1 x DisplayPort – 1 x VGA port – 1 x HDMI port – 1 x 1 Gb Realtek Ethernet port – 3 x audio connectors – 1 x BIOS FlashBack button – 1 x combined PS/2 port for keyboard/mouse
Other Features	Audio – Realtek high-definition audio codec 7.1 Surround Sound* Compatible with: connector detection, multi-streaming, front panel connector reassignment Supports playback of up to 24 bits/192 kHz – Audio features Audio shielding High-quality audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Ethernet – 1 x Realtek 1Gb Ethernet ASUS LANGuard Storage – AMD Ryzen desktop processors series 9000 and 7000 M.2_1 slot (M key), type 2280 (compatible with PCIe 4.0 x4) M.2_2 slot (M key), type 2242/2260/2280 (compatible with PCIe 4.0 x4) – AMD Ryzen™ desktop processors series 8000 M.2_1 slot (M key), type 2280 (compatible with PCIe 4.0 x4) M.2_2 slot (M key), type 2242/2260/2280 (compatible with PCIe 4.0 x4/x2)* – AMD A620A chipset 4 x 6 Gb/s SATA ports * Specifications vary depending on the CPU type. USB – Rear USB ports (6 ports total) 2 x 10 Gbps USB ports (2 Type A) 4 x USB 2.0 ports (4 Type A) – Front USB ports (7 ports total) 1 x 5 Gbps USB connector (compatible with USB Type-C) 1 x 5 Gbps USB connector supporting 2 additional 5 Gbps USB ports 2 x USB 2.0 connectors supporting 4 additional USB 2.0 ports * USB Type-C power output: max. 5 V/3 A.
Review Date	20-11-2025 by RTY
