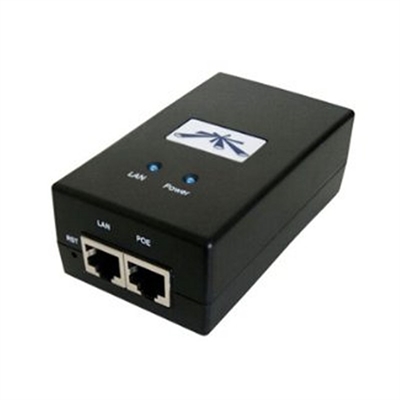

Ubiquiti PoE Injector POE-2412W 24VDC 0.5A

The ubiquiti injector Poe Poe-2412W 24VDC 0.5a is an essential accessory to optimize your Wi-Fi network. This POE injector provides an efficient solution to feed network devices through a single cable, eliminating the need for multiple current adapters. Ideal for environments where the electrical installation is limited, ensures a stable and reliable connection.

Technical Specifications

• PoE 24V Designed by Ubiquiti for its Stations and CPEs. The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, can be mounted on the wall using optional mounting brackets.
• Brand Ubiquiti
• Model POE-2412W
• Function
• 24V PoE Adapter (24V 0.5A)
• Features
• Output Voltage 24VDC @0.5A
• Input Voltage 90-260VAC @47-63Hz
• Input Current 0.3A @120VAC
• @120VAC, 0.2A @230VAC
• Maximum Currents @230VAC
• Efficiency 70+%
• Output Ripple 1% Max
• Switching Frequency 200kHz
• Line Regulation +/- 0.5%
• Load Regulation +/- 1%
• Operating Temperature -10C to +60C
• Storage Temperature -20 to +85C
• Relative Humidity 5% to 90% non-condensing
• Dimensions (LxWxH) 85x43x30 mm
• Weight 100 grams
• AC Connector IEC-320 C6 Data IN / POE Connector RJ45 reinforced 80%
• Current Indicator LED
• Surge Protection Common mode
• Residual Voltage Protection 11V
• Data, 77.5V
• Maximum Surge Current 1200A (8/20uS)
• Peak Current 36A (10/1000uS)
• Data Capacitance
• Technical brochure https://dl.ubnt.com/datasheets/poe/PoE_Adapters_DS.pdf
• Revision Date 11-08-2014 by FE4
