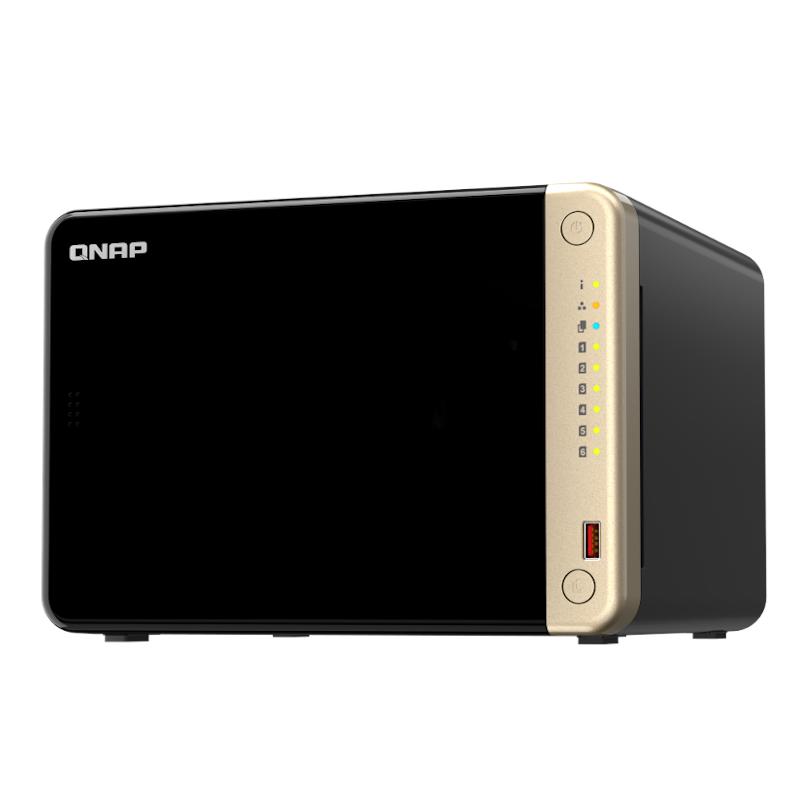

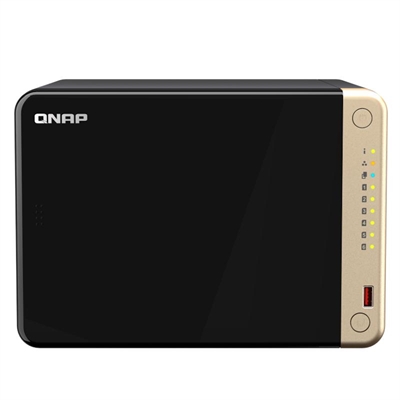

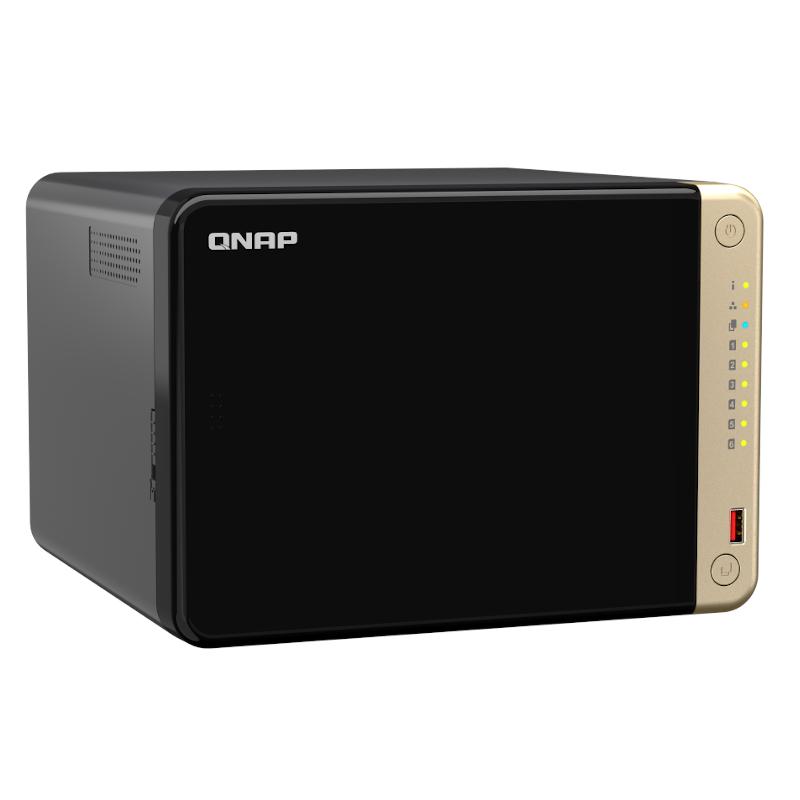

QNAP TS-664-8G NAS 6xHDD-Bay 2×2.5GbE 4xUSB

The Qnap TS-664-8G is a powerful NAS designed to meet the storage and management needs of small and medium enterprises, as well as advanced users. With a capacity to host up to 6 hard drives, this device allows flexible and scalable expansion, ideal for those who require a lot of space for their files and applications.

Equipped with a high performance processor and 8 GB of RAM, the TS-664-8G guarantees a fluid and efficient functioning, even during intensive tasks. Its two 2.5GBE ports offer fast and stable network connectivity, allowing data transfers at high speed and a user experience without interruptions. In addition, it has four USB ports that facilitate the connection of external devices, such as printers, storage units or security cameras.

The intuitive user interface of the QTS operating system allows storage, automatic backup and access to multimedia applications to easily manage. Thanks to its support for virtualization and containers, it is possible to execute applications in isolated environments, optimizing the use of resources and improving security.

The design of the QNAP TS-664-8G also stands out for its energy efficiency and its cooling system, allowing silent and prolonged functioning. Either for file storage, multimedia servers or Backup solutions, the TS-664-8G is presented as a robust and reliable option for those who seek to maximize their productivity and protect their information.

Technical Specifications

• Brand QNAP
• Model TS-664-8G
• Graphics – Intel UHD Graphics
• CPU – CPU Model: Intel Celeron N5095 4-core/4-thread processor
• CPU Architecture: 64-bit x 86
• Up to 2.9 GHz
• Memory – System Memory: 8GB integrated memory
• Maximum Memory Capacity: 8 GB
• Flash Memory: 4 GB (dual-boot OS protection)
• Storage
• Drive Bay: 6 SATA 3.5″ units at 6Gb/s
• Drive Compatibility:
• 3.5-inch SATA hard disk drives
• 2.5-inch SATA solid state drives
• M.2 Drive Slots: 2 slots for M.2 2280 3 x1
• Hot-swappable

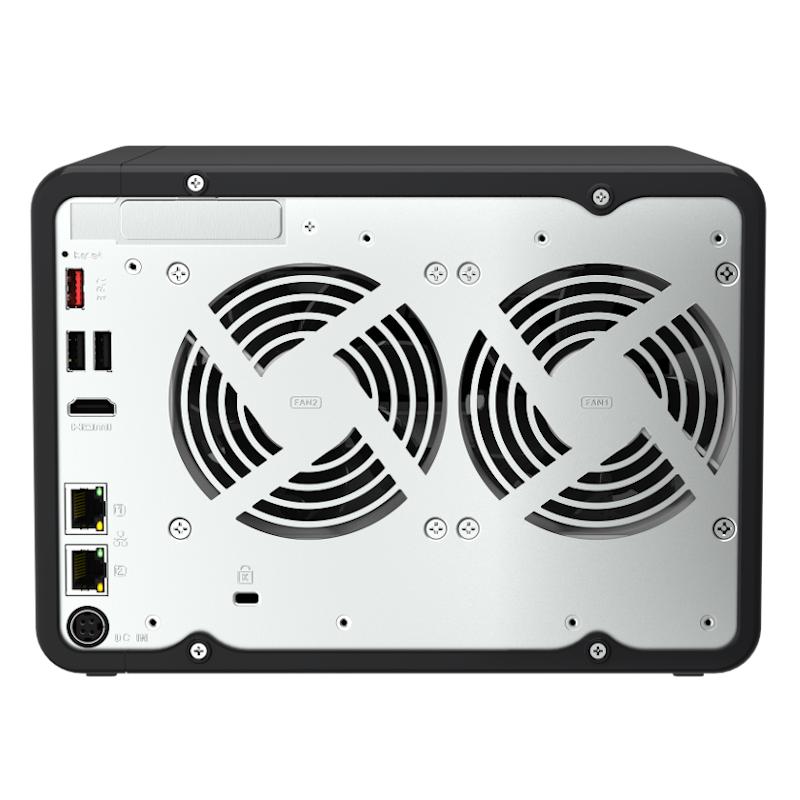

• Connections –  2 x 2.5G/1G/100M/10M ports
• Wake-on-LAN (WOL)
• 2 x USB 3.2 Gen 2 (10 Gbps) type A ports
• 2 x USB 2.0 ports
• Jumbo Frame
• 1 x HDMI 2.1
• Slot 1: PCIe Gen3 x2
• Features –  2 x 90 mm 12 V DC fans
• LED Indicators
• Power Supply Unit: 120W adapter, 100-240 V
• Power Consumption: Hard disk hibernation mode: 23.22 W
• Power Consumption: Operating mode, typical: 44.02 W
• System Alert: Buzzer
• Kensington Security Slot
• Max. number of simultaneous connections (CIFS): with max. memory 1500
• Operating Temperature 0 – 40 °C
• Storage Temperature -20 – 70 °C
• Relative Humidity: 5 ~ 95 % (non-condensing), wet bulb: 27 °C
• Appearance
• Dimensions: 168 × 235 × 226 mm
• Weight 2.9 kg
• Revision Date 12-01-2023 by RTY
