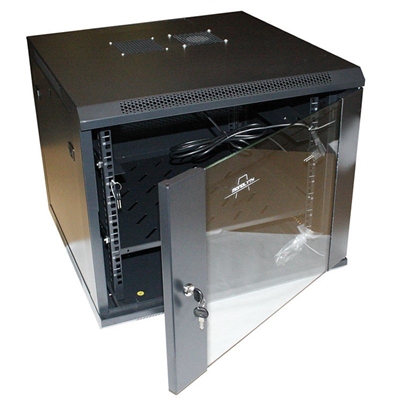

Monolyth Wall Cabinet 15U SH6615 600×600 1F-1V-2L
159,28 €
The Monolyth Armario Mural 15U SH6615 is a perfect solution for storing equipment in reduced spaces. Its robust design and functionality make it ideal for any installation.
Shipping Cost & Delivery Time
Discover the Monolyth Armario Mural 15U SH6615, a high-quality rack cabinet designed to optimize your spaces. With dimensions of 600×600 mm, this wall-mounted cabinet is ideal for network and telecommunications equipment installations.
- 15U capacity to accommodate various equipment.
- Robust construction that guarantees durability and resistance.
- 1F-1V-2L allows for easy cable and connection organization.
- Compact design that adapts to any environment, maximizing space usage.
Technical Specifications
- Brand Monolyth
- Model 202130
- Features – Front door made of glass.
- Front security opening with key.
- Removable side panels.
- Cable entry through the rear panel and bottom base.
- Adjustable mounting rails.
- Can be placed on wall or floor.
- Specifications – Height: 15U
- Dimensions: 600 x 600 x 769 mm
- Weight: 35 Kg
- TREATMENT: Degreased, anti-rust phosphoric paint.
- STANDARDS: ANSI/EIA, RS-310-D, DIN41491 PART1, DIN41491, PART7, ETSI.
- Standard compatible with 19” International Standard.
- RoHS Directive 2002/95/EC.
- EN 60439-1:1999 + A1:2004.
- EN 60439-3:1991 + A1:1994. AC: 1994+A2:2001+AC:2005+AC:2009.
- PROTECTION RATING: IP20.
- MAXIMUM STATIC LOAD: 60Kg.
- MATERIAL: SPCC Steel.
- Steel thickness: Mounting rails 2.0 mm.
- Mounting angles: 1.5 mm, rest 1.2 mm.
- COLOR: RAL 9004 (black) smooth finish.
- Included accessories – 1 fixed tray.
- 1 set of side brackets.
- 1 ceiling fan of 120 mm.
- Mounting screws included and set of keys for locks.
- Revision Date 11-01-2018 by MSB
Additional information
| Weight | 15,0 kg |
|---|---|
| Dimensions | 80,0 × 64,0 × 62,0 cm |
